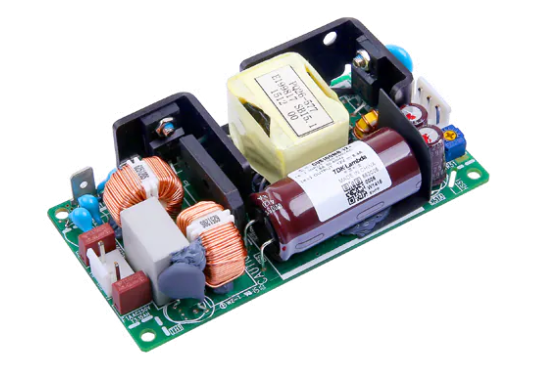

CUS100MB-15|AC-DC Power Supply Module|Lambda Power The CUS100MB15 is an AC-DC power supply module manufactured by TDK-Lambda, belonging to the CUS-M series, designed specifically for medical equipment, supporting a wide range input voltages and featuring high reliability. ‌Core Parameters‌: The input voltage range is 85~265VAC, the output voltage is 15C (adjustable range 13.5~16.5VDC), the maximum output current is 5.4A (model CUS100-15/A) or 6.7A (model CUS100MB-15/B), and the maximum output power corresponds to 81 or 100.5W. The typical efficiency value is 89%.‌ ‌Operating Conditions‌: The operating temperature range is -20C~70°C, and the cooling method requires forced ventilation (some models support natural cooling). The dimensions are approximately 63.1×36×15mm (CUS100MB-15/A) or 56.5×27.9×122mm (CUS100-15/B), and the weight is about 260g (model /A) or 220g (model /B).‌ ‌Optional Models‌: Several variants are available, such as /A (case and base), /B (base plate), /G2 (Class II double insulation) /CO2 (coating), /M (Molex terminals), and /T (European terminals), to accommodate different installation needs.‌‌ TheUS100MB-15 emphasizes high efficiency (some models above 90%), low no-load loss (<0.5W), and a long warranty (3 years), suitable for BF-rated medical applications.‌‌
