HWS100A-24/A TDK Lambda AC-DC power supply; natural convection cooling switch mode power supply

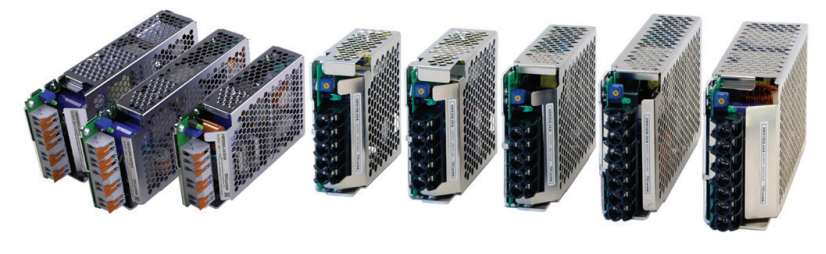

HWS100A-24/A TDK Lambda AC-DC Power Supply Natural Air Cool Switch Mode Power Supply TDK-Lambda 100W switching power supply, 24V DC, 4.5A, chassis mount Brand TD-Lambda Output Voltage 24V DC Output Current 4.5A Rated Power 100W Output Quantity1 Input Voltage 120 → 370 V dc, 85 → 265 V ac Mounting Type Chassis Packaging Type Closed Length 82mm Width 28mm Depth 160mm Efficiency 89% Weight 450g Minimum Temperature -10°C Maximum Temperature  50°C e857ee8b-0bf-44a8-81c5-d271ec033881.png The TDK-Lambda hws-a 100W single output AC / DC mode embedded power supply has a rated output current of 4.5a at 24VDC. It has a universal input supply rated voltage of 85VAC to 265VAC and 120VDC to 370VDC. The series contains 5, with a rated voltage range from 15W to 150W. As a major upgrade to the existing hws series, it is still compatible with the newws-a series, making it easy to upgrade. Compared to the previous series, this switch mode power supply is up to 12% lighter. In addition, it also an efficiency of up to 91% and very low power consumption when idle, which helps reduce the impact on the environment. Note: Only products with the A at the end of the part number have a cover installed, all others are open frame. Features and Advantages Wide range of AC input Low Easy system cooling Support global use Limited lifetime warranty Applications Industrial Factory Automation Process Control LED Dis and Signs Test and Measurement Broadcasting Communication Certifications EN55011 AC / EN5502 DC FCC Japan (Japan CSA Certified EN 60950-1 UL508 (with cover HWS100A-24/A    HWS150A-24/A    HWS300-24   HWS600-24     HWS1500-24     CUS100MB-24 CUS600M12    CUS600M-24    CUS600M-12/EF   CUS600M-48EF TDK-Lambda; TDK Power Supply; TDK Common Mode Filter; TDK EPCOS Common Mode Filter; TDK Filter; TDK Capacitor TDK Inductor; TDK Ferrite Bead; TDK Thermistor; TDK Distributor For technical and business consultations, please contact Engineer Zhang WhatsApp:  86 13430464310 Email:ingfenzhang969@gmail.com
