CUS100MB-5/A TDK-Lambda Medical Grade AC-DC Power Module

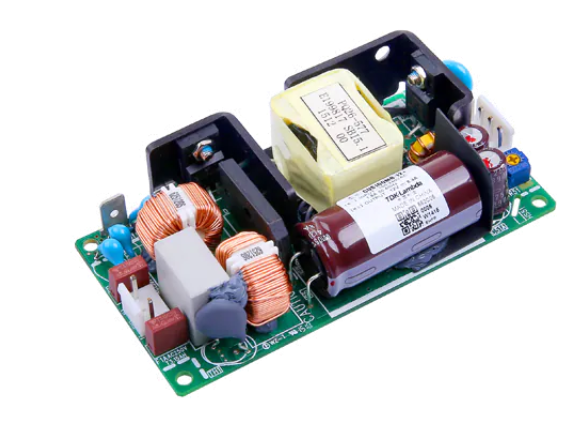

CUS100MB-5/A TDK-Lambda Medical Grade AC-DC Power Module CUS100MB-5/A is a medical grade AC-DC power module produced by TDK-Lambda, supporting 100W output, conforming medical safety standards (2xMOPPs), and suitable for global markets (excluding Japan). Product Features Output Specifications: 100W,5V Medical Certification: Complies with 2xMOPPs safety standards, suitable for both Class I and Class II medical equipment Cooling Method: Natural, convenient for power expansion Optional Features: Optional with cover design Application Scenarios Mainly used in medical equipment, industrial control, and other fields with high requirements for and stability. TDK's highly reliable 100W single output medical power supply. 90% efficiency, natural cooling 80W or forced air 100W (1.2m/s wind speed), standard 2" x 4" size, and has obtained both medical and ITE safety certifications CUS100MB is suitable for Class I applications, and the optional CUS100MB/G2 is suitable for Class II (double insulation) applications, the safety requirements of hospital, clinical, dental, and home medical equipment. CUS100MB is a medical power supply with a wide input voltage range of 85ac~265Vac, and output voltage models from 5V, 12V, 15V, 18V, 24V 28V, 36V to 48V are available. Less than 0.5W of energy-saving no-load loss, it can output loaded at -20°C~50°C ambient temperature. In addition, a variety of optional models can be provided: /A, /B, /G2,CO2, /M and /T. The input-output insulation voltage is 4,000Vac (2 x MOPPs), the input-ground voltage is 2,000Vac (1 x MOPP), and the output-ground insulation voltage is 1,500Vac (1 MOPP), suitable for BF grade applications. Main features Compact size: 2'' x 4''x 1'' (50.8 x101. x 25.4mm) High efficiency (24V model): 90% Natural cooling: 80W, 100W (limited to24V,28V, 36V, 48V) Forced air cooling: 100W Output models: 5V,1V, 15V, 18V, 24V, 28V, 36V, 48V Optional models: /B ( plate), /A (case and base), /G2 (Class II type), /CO2 (coating), /M (Molex terminals) /T (European terminals) Wide operating temperature range: -20°C ~ 70°C, -30°C start Safety standard: Obtains EN/60950-1, IEC60601 second and third editions (2 x MOPPs) Altitude: 5000 meters Medical andE applications are suitable for Class I or Class II (CUS100MB/G2) applications 3-year warranty Product Applications Medical equipment such as monitors, respiratoryhesia machines, injector pumps, imaging systems, etc. Broadcasting and professional audio testing and measurement CUS100MB series of naturally cooled power supplies CUS10MB-24/A CUS100MB-12/A CUS100MB-28 CUS100MB-5 C100MB-15 High power density, up to 94% efficiency Easy power increase Low standby power consumption 1-year warranty Detailed introduction of CUS100MB series of naturally cooled AC-DC power supplies CUS100MB-24/A CUS100MB-12/AThe CUS100MB series of naturally cooled AC-DC power supplies CUS100MB-24 CUS100MB-12 CUS00MB-48 CUS100MB-28 CUS100MB-5 CUS100MB-1
