TDK-LAMBDA HWS1500-24 24V 65A multi-channel DC power supply module high power supply

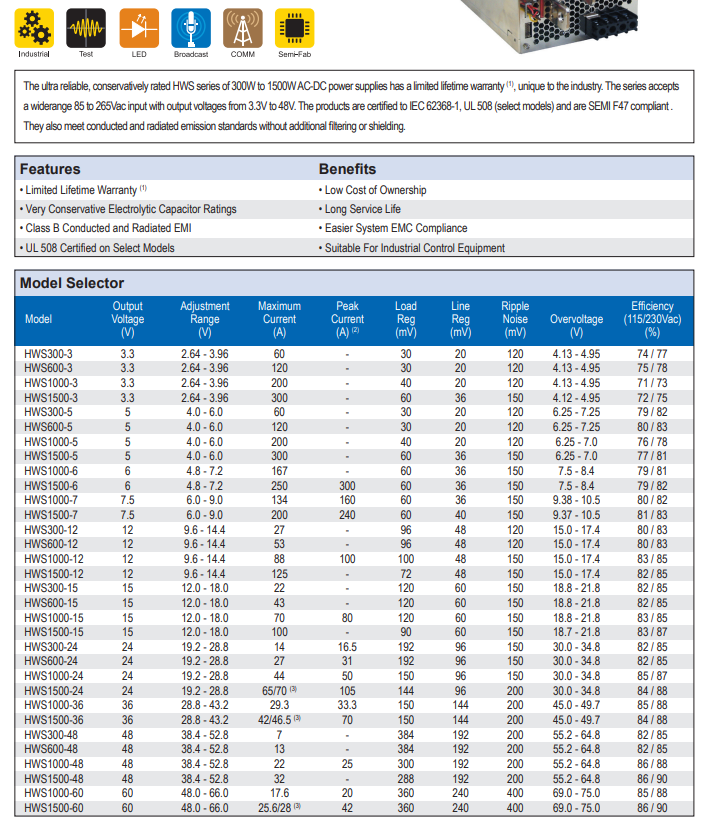

TDK-Lambda HWS1500-24 1.5kW switch mode power supply, 24V, 70A, rack mount Brand TDK-Lambda Output Voltage 24V DC Output Current 70A Rated Power .5kW Output Number 1 Input Voltage 120 → 330 V dc, 85 → 265 V ac Ming Type Rack Packaging Type Closed Length 11in Width 3.25in Depth 5in Efficiency 88 Maximum Temperature 71°C Weight 3.8kg Minimum Temperature -10°C TDK-Lambda Switch Mode Power Supply TDK-Lambda HWS1500 Series 1500W single output AC to DC embedded switch mode power supply has an output current rating of 70 @ 24VDC. It has a universal input power supply rated voltage of 85VAC to 265VAC and 120VDC 330VDC. Note: Stated dimensions do not include Terminal Block. Peak load for 10 milliseconds (max), duty cycle 35. De-rate above 50°c Features and Benefits Extremely compact, typically 50% less space than previous generations Heavy duty power supply to operate reliably in the most severe environments Power On LED indicator Meets the half F47 (High Line AC) requirements of semiconductor fabrication equipment Easy to install crew terminal connectors Adjustable output voltage (±20% ) Overvoltage and overcurrent protection Packaged 300W to 1500 with built-in fan Efficient Wide range of AC input Applications Factory Automation Test and Measurement Automated Services Certifications 60950-1 UL 60950-1 csa 60950-1 EN 5017 en 61000-3-2 (power factor correction) en 55022-b fcc-b (curve a, forWS1500) csa certified
