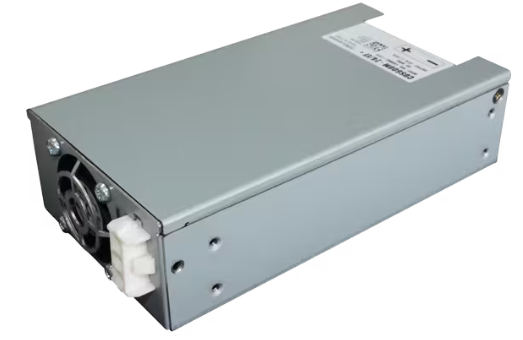

CUS600M-48/EF TDK-Lambda 600W switch power supply, 48V

TDK-Lambda CUS600M-48/EF 600W Switch Mode Power Supply, 48VManufacturer: TDK-Lambda Product Category: Switch Mode Power Supply REACH - SVHC: Product: Switching Supplies Output Voltage - Channel1: 48 VDC Number of Outputs: 1 Output Output Power: 600 W Open Frame / Closed: Enclosed Inputtage: 85 VAC to 265 VAC Output Current - Channel 1: 12.6 A Industrial: Medical, Industrial ounting Style: Chassis Length: 157 mm (6.181 in) Width: 85 mm (3.346 in)Height: 42.5 mm (1.673 in) Series: CUS600M Certifications: CE, EN, IEC, Trademark: TDK-Lambda Dimensions: 157 mm x 85 mm x 42.5 mm Efficiency: 96 Input Frequency: 47 Hz to 63 Hz Load Regulation: Regulated Maximum Operating Temperature:   70 C Minimum Operating Temperature: 20 C Power - Convection: 403.2 W Power - Forced Air: 604.8 W Product Type:itching Power Supplies Subcategory: Power Supplies Type: AC-DC Power Supply Part Number Alias: LMF600-20B48US600M-48/EF Series    CUS600M Up to 95% efficiency Rated power 600W power density 17.3W/inch³ Low fan noise 42dB(typical)

TDK Corporation announced the addition of the CUS600M/EF model with a case and fan to CUS600M series of medical/industrial AC-DC power supplies in the substrate style. This new model features high efficiency, high power density, and is suitable applications requiring low noise and small size, including medical equipment, test and measurement instruments, broadcasting and professional audio, industrial equipment. The product measures 3.3" x .2" (85 x 157mm), with a height of 42.5mm. A total of 7 models are currently available, with voltages of 12V, 19V, 24V, 28V, 32V, 36V, and 48V The full voltage range of 85 - 265Vac input, with an efficiency of up to 95%. Built-in 5V 15A auxiliary power, remote control switch, remote compensation, Power Good signal (simultaneously monitoring input and output status), and output voltage adjustment potentiometer. The and output isolation voltage is 4kVac (2 x MoPP), the input and ground isolation voltage is 2kVac (1 x MoPP), output and ground isolation voltage is 1.5kVac (1 x MoPP), suitable for medical equipment of B and BF grades. The leakage current to ground is than 200uA, the contact leakage current is less than 50µA, and the working altitude is up to 5,000m. product has obtained IEC/EN/ES/CSA60601-1, IEC/EN/UL/CSA62368-1 certification, with a CE mark with low voltage and ROHS2 directive. Complies with EN 55011-B and EN 55032- (conducted and radiated), and meets EN61000-3-2 harmonics, IEC60601-1-2 fourth edition andEC61000-4 immunity standards. Main applications Medical equipment         - Laboratory, life science equipment: in vitro diagnostic equipment, sequencers, analyzers, etc.         - Clinical care: monitors, anesthesia machines, etc.         - Image systems: CT, MRI, X-ray, ultrasound - Other medical equipment: hospital beds, dialysis machines, dental equipment, etc. Test and measurement instruments Broadcasting and professional audio Industrial equipment Main featuresHigh work efficiency: up to 95%, efficiency greater than 93% from light load 120W to full load (230VAC input Industry small size: 3.3 "x 6.2", height 42.5mm Low fan noise: 42dB (typ value) High power density: 17.3W/inch³, forced air cooling of 600W in an ultra-small size Built- multi-function: 5V 1.5A auxiliary power, remote control switch, remote compensation and Power Good signal Low leakage current: leakage current to ground is less 0.2mA Good EMI characteristics: Class B conducted and radiated Wide range of applications: medical equipment of B and BF grades High working altitude: to 5,000 meters (medical and industrial) CUS600M-24     CUS600M-12/EF    CUS600M-48/EF CUS600M-12
