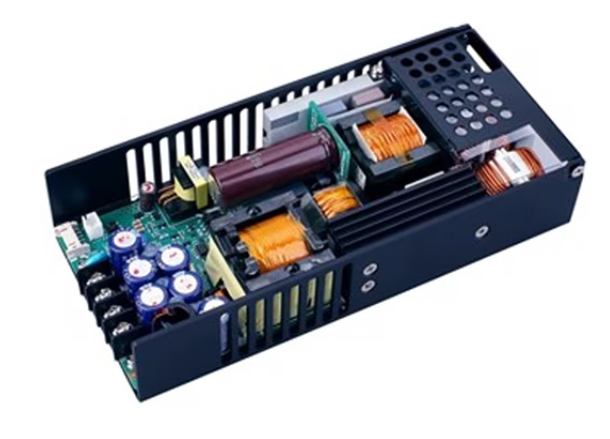

TDK-Lambda power supply CUS200M-24 open frame AC/DC power supply

CUS200M-24 TDK-Lambda AC/DC open frame power supply (power unit), ITE medical, TDK-Lambda 252W switch mode power supply, 24V DC, 8.4A, chassis mount Brand TDK-LambdaOutput Voltage 24V DC Output Current 8.4A Rated Power 252W Output No. 1 Input Voltage 5 → 265V AC Mounting Type Chassis Package Type Open frame Length 127mm Width 76.2mm Med Approval Yes Depth 31mm Max. Temperature  70°C Min. Temperature -20°C Weight 350g TD-Lambda has developed the ultra-thin, high efficiency, fan-less CUS200M series, in which the CUS200M is 6% efficient and 32% smaller than the previous generation (150W HWS150/ME). The CUS200M is a super-thin high-efficiency medical power supply with a wide voltage input range. ■ Main Features Compact size: 3’’ x 5’’ x 1.3’’ (762 x127 x 34mm) High efficiency: up to 94% High power density: up to 10.3W/inch3 Natural: 200W, forced air cooling: 250W Output models: 12V, 18V, 24V, 4V Built-in: 5V 0.6A (1A forced air cooling) auxiliary power, DC OK, Remote on/off remote control switch Wide operating temperature range -20°C ~  70°C Safety Approval: EN/UL60950-1, IEC60601 2nd 3rd edition (2 x MOPPs) Altitude: 4000m Medical applications, 5000m ITE applications 3 year warranty■ Product Applications Medical equipment Broadcast and professional audio Test and measurement TDK-Lambda CUS200M series Specifications as follows: CUS20M-12 CUS200M-12/A CUS200M-18 CUS200M-18/ CUS200M-24 CUS200M-24/A CUS200M-36 CUS20M-36/A CUS200M-48 CUS200M-48/A
