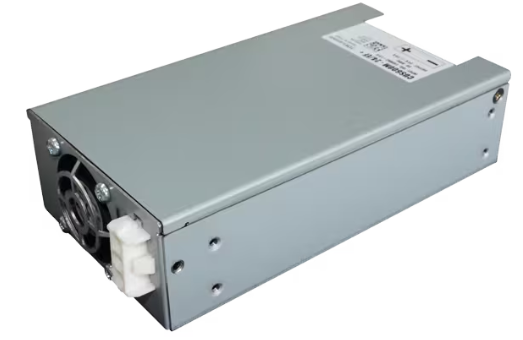

CUS600M-12/EF TDK Lambda power supplies 600W switch mode power supply, 12V

TDK-Lambda CUS600M-12/EF 600W Switching Power Supply, 12V DC Manufacturer: TDK-Lambda Product Category: Switching Power Supplies Shipping Restrictions: Mouser does not sell this product in your region at this time. RoHS: REACH - SVHC: Product: Switching Supplies Output Voltage - Channel 1: 12 VDC Number of Outputs: 1 Output Output Power: 600 W Open Frame/Enclosed: Enclosed Input Voltage: 85 VAC to 265 VAC Output Current - Channel 1: 50 A Industrial: Medical, Industrial Mounting Style: Chassis Length: 157 mm (6.181 in) Width: 85 mm (3.346 in) Height: 42.5 mm (1.673 in) Series: CUS600M Certifications: CE, EN, IEC, UL Trademark: TDK-Lambda Dimensions: 157 mm x 85 mm x 42.5 mm Efficiency: 96% Input Frequency: 47 Hz to 63 Hz Load Regulation: Regulated Maximum Operating Temperature:  70 C Minimum Operating Temperature: -20 C Power - Convection: 400.8 W Power - Forced Air: 600 W Product Type: Switching Power Supplies 8 Subcategory: Power Supplies Type: AC-DC Power Supply Part Number Aliases: LM600-12B12 LMF600-20B12 CUS600M-12/EF Series CUS600M Up to 95% efficiency Rated power 600W High power density 17.3W/inch³ Low fan noise 42dB(typical)

TDK Corporation announced the addition of the CUS600M/EF model with a case and fan to its CUS600M series of medical/industrial AC-DC power supplies in a PCB-mount package. This new model, with its high efficiency and high power density, is ideal for applications requiring low noise and small size, including medical equipment, test and measurement instruments, broadcasting and professional audio, and industrial equipment. The product measures 3.3" x 6.2" (85 x 157mm), with a height of 42.5mm. A total of 7 models are currently available, with rated voltages of 12V, 19V, 24V, 28V, 32V, 36V, and 48V. The full voltage range of 85 - 265Vac input, with an efficiency of up to 95%. Built-in 5V 1.5A auxiliary power, remote control switch, remote compensation, Power Good signal (simultaneously monitoring the input and output status), and output voltage adjustment potentiometer. The input to output isolation voltage is 4kVac (2 x MoPP), the input to ground isolation voltage is 2kVac (1 x MoPP), and the output to ground isolation voltage is 1.5kVac (1 x MoPP), suitable for medical equipment of B and BF grades. The leakage current to ground is less than 200uA, the contact leakage current is less than 50µA, and the working altitude is up to 5,000m. The product has obtained IEC/EN/ES/CSA60601-1, IEC/EN/UL/CSA62368-1 safety certification, with a CE mark with low voltage and ROHS2 directive. Complies with EN 55011-B and EN 55032-B (conducted and radiated), and meets EN61000-3-2 harmonics, IEC60601-1-2 fourth edition and IEC61000-4 immunity standards. Main applications: Medical equipment         - Laboratory, life science equipment: in vitro diagnostic equipment, sequencers, blood analyzers, etc.         - Clinical care: monitors, anesthesia machines, etc.         - Imaging systems: CT, MRI, X-ray, ultrasound         - Other medical equipment: hospital beds, dialysis machines, dental equipment, etc. Test and measurement instruments Broadcasting and professional audio Industrial equipment Main features: High work efficiency: up to 95%, efficiency greater than 93% from light load 120W to full load (230VAC input) Industry small size: 3.3 "x 6.2", height 42.5mm Low fan noise: 42dB (typical value) High power density: 17.3W/inch³, forced air cooling of 600W in an ultra-small size Built-in multi-function: 5V 1.5A auxiliary power, remote control switch, remote compensation and Power Good signal Low leakage current: leakage current to ground is less than 0.2mA Good EMI characteristics: Class B conducted and radiated Wide range of applications: medical equipment of B and BF grades High working altitude: up to 5,000 meters (medical and industrial) CUS600M-24     CUS600M-12/EF     CUS600M-48/EF CUS600M-12
