CUS600M-24 TDK-Lambda 600W switch power supply, 24V DC, 16.7A, CUS600M series

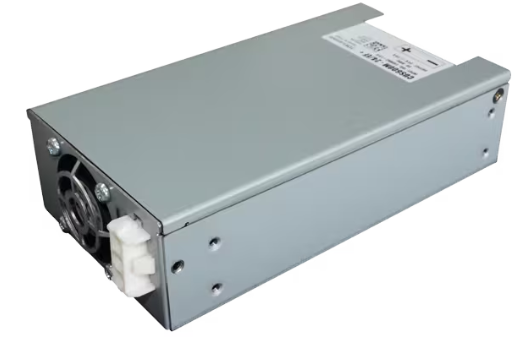

TDK-Lambda 600W Switch Mode Power Supply, 24V DC, 6.7A, CUS600M Series TDK-Lambda has launched a 600W switch mode power supply, featuring 24V output with maximum output current of 16.7A, suitable for medical equipment and other applications. ‌ Technical Specifications ‌Input Voltage‌ 85-265V AC ‌Output Voltage‌: 24V DC ‌Output Current‌: 16.7A ‌Operating Temperature‌: -20°C to 70°C (derated) Up to 95% efficiency Rated Power 60W High power density 17.3W/inch³ Low fan noise 42dB(typical) TDK Corporation announced the of the CUS600M/EF model with housing and fan to its CUS600M series of medical/industrial AC-DC power supplies. This offers high efficiency and high power density, making it ideal for applications requiring low noise and small size, including medical equipment, test and measurement instruments, broadcasting and professional audio, industrial equipment The product measures 3.3" x 6.2" (85 x 157mm), height 42.5mm. total of 7 models are currently available with rated voltages of 12V, 19V, 24V, 28V, 32V,36V and 48V. Full voltage range 85 - 265Vac input, up to 95% efficiency. Built-in V 1.5A auxiliary power supply, remote on/off, remote compensation, Power Good signal (simultaneously monitoring input and output status) and output voltage adjustment potentometer. Input to output isolation voltage 4kVac (2 x MoPP), input to ground isolation voltage 2kVac (1 x MoPP , output to ground isolation voltage 1.5kVac(1 x MoPP) , Complies with medical B and BF grades. Leakage current to less than 200uA, contact leakage current less than 50µA, up to 5,000m working altitude. The product has IEC/EN/ES/CSA60601-1, IEC/EN/UL/CSA62368-1 safety certifications with CE marking with low voltage and ROHS2 compliance. Complies with EN 55011-B and EN 55032-B (conduct and radiated) , and meets EN61000-3-2 harmonics, IEC60601-1-2 fourth edition and IEC1000-4 immunity standards. Main Applications Medical Equipment         - Lab, Life Science Equipment: In Vitro Diagnostic Equipment, Sequers, Hematology Analyzers, etc.         - Clinical Care: Monitors, Anesthesia Machines, etc.         - Imaging Systems: CT MRI, X-Ray, Ultrasonic         - Other Medical Equipment: Hospital Beds, Dialysis Machines, Dental Equipment, etc. Test and Measure Instruments Broadcasting and Professional Audio Industrial Equipment Main Features High efficiency: Up to 95%, efficiency over 93% 120W light load to full load (230VAC input) Smallest size in the industry: 3.3" x 6.", height 42.5mm Low fan noise: 42dB(typical) High power density: 17.3W/inch, achieve forced air cooling 600W in a very small size Built-in multi-function: 5V 1.5A auxiliary power supply remote on/off, remote compensation, and Power Good signal Low leakage current : Leakage current to ground less than 0.2mA Good EMI: Class B conducted and radiated Wide range of applications: Complies with medical B and BF grades High working altitude: Up to 5,00 meters (medical and industrial) TDK-Lambda 600W Switch Mode Power Supply CUS600M-12 CUS00M-19 CUS600M-24 CUS600M-28

CUS600M1-32

CUS600M1-36

CUS600M1-48
