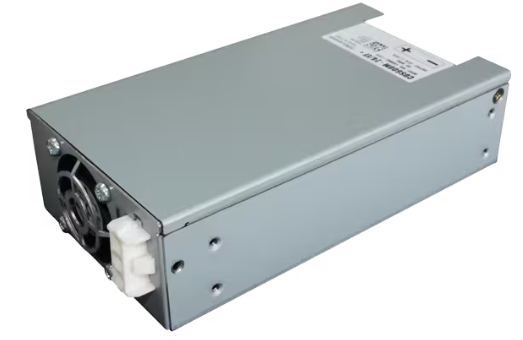

CUS600M-24 TDK-Lambda 600W switch power supply, 24V DC, 16.7, CUS600M series

The CUS600M-24 is a 600W switch mode power supply TDK-Lambda, with a 24V DC output and a maximum output current of 16.7A, belonging to the CUS600M series TDK-Lambda has launched a 600W switch mode power supply with a 24V DC output and a maximum output current of 16.7, suitable for medical equipment and other scenarios. ‌ Technical specifications ‌Input voltage‌: 85-265V AC ‌Output voltage‌:24V DC ‌Output current‌: 16.7A ‌Operating temperature‌: -20°C to 70°C (with der) High efficiency up to 95% Rated power 600W High power density 17.3W/inch³ Low fan noise42dB (typical) TDK Corporation announced the addition of the CUS600M/EF model with a case and fan to the CUS60M series of medical/industrial AC-DC power supplies from its TDK-Lambda brand. This new model, with its high efficiency and high power density, is suitable for requiring low noise and small size, including medical equipment, test and measurement instruments, broadcasting and professional audio, and industrial equipment. The product measures 3.3" x6.2" (85 x 157mm), with a height of 42.5mm. A total of 7 models are currently available, rated voltages of 12V, 19V, 24V, 28V, 32V, 36V, and 48. The full voltage range of 85 - 265Vac input, with high efficiency up to 95%. Built-in 5V 15A auxiliary power supply, remote switch, remote compensation, Power Good signal (simultaneously monitoring input and output status), and output voltage adjustment potentiometer. The and output isolation voltage is 4kVac (2 x MoPP), the input and ground isolation voltage is 2kVac (1 x MoPP), the output and ground isolation voltage is 1.5kVac (1 x MoPP), suitable for medical equipment of B and BF grades. The leakage current to ground less than 200uA, the contact leakage current is less than 50µA, and the working altitude is up to 5,000m.The product has obtained IEC/EN/ES/CSA60601-1, IEC/EN/UL/CSA62368- safety certification, with a CE mark compliant with low voltage and ROHS2 directive. Complies with EN 55011-B and EN 5503-B (conducted and radiated), and meets EN61000-3-2 harmonics, IEC60601-1-2 fourth and IEC61000-4 immunity standards. Main applications Medical equipment         - Laboratory, life science equipment: in vitro diagnostic equipment, sequenc, blood analyzers, etc.         - Clinical care: monitors, anesthesia machines, etc.         - Image systems: CT, MRI, X-ray,         - Other medical equipment: hospital beds, dialysis machines, dental equipment, etc. Test and measurement instruments Broadcasting and professional audio Industrial equipment Main High work efficiency: up to 95%, efficiency greater than 93% from light load 120W to full load (230VAC) Industry small size: 3.3 "x 6.2", height 42.5mm Low fan noise: 42dB (ical) High power density: 17.3W/inch³, forced air cooling of 600W in an ultra-small size Built-inunction: 5V 1.5A auxiliary power supply, remote switch, remote compensation and Power Good signal Low leakage current: leakage current to ground is less than 0.2mA Good EMI characteristics: Class B conducted and radiated Wide range of applications: medical equipment of B and BF grades High working altitude: up to5,000 meters (medical and industrial) TDK-Lambda 600W switch mode power supply CUS600M-12 US600M-19 CUS600M-24 CUS600M-28 CUS600M-2 CUS600M-36 CUS600M-48 CUS600M1-12
