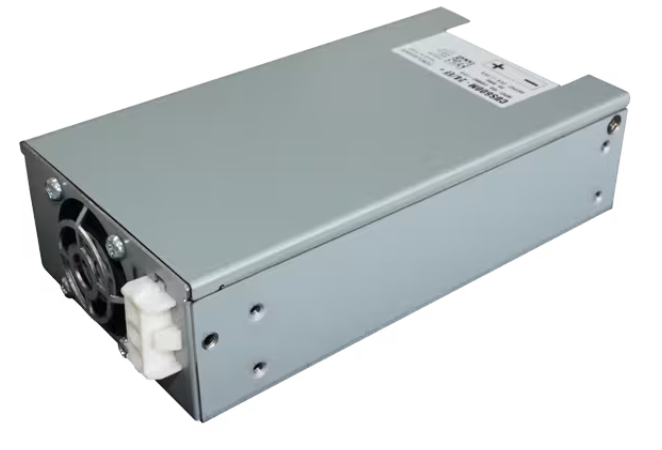

CUS600M1-24 TDK-Lambda Industrial Power Supply 600W Series CUS600M1-12EF

TDK-LAMBDA Industrial 600W Series CUS600M124/EF CUS600M1-12/EF CUS600M1-48/EF CUS600M1-2/EF CUS600M1-36/EF Main Features · Efficiency: 95%, efficiency greater than 93% from 12W light load to full load (230VAC input) · Industry's small size: 3.3" x 6.2", height 425mm · Low fan noise: 42dB( value) · Power density: 17.3W/inch³, small size achieves forced air cooling 60W TDK-LAMBDA Industrial 600W Series CUS600M1-24/EF CUS600M112/EF detailed introduction TDK-LAMBDA Industrial 600W Series CUS600M1-24/EF CUS60M1-12/EF CUS600M1-48/EF CUS600M1-28/EF CUS60M1-36/EF Main Features · Efficiency: 95%, efficiency greater than 93% from 120W light load to load (230VAC input) · Industry's small size: 3.3" x 6.2", height 42.5mm Low fan noise: 42dB( value) · Power density: 17.3W/inch³, small size achieves forced air cooling 600 · Built-in multi-function: 5V 1.5A auxiliary power, remote switch, remote compensation and Power Good signal · Low leakage current: leakage to ground less than 0.2mA · Good EMI characteristics: Class B conducted and radiated · Wide range of applications: equipment of B and BF grades Working altitude: 5,000 meters (industrial) TDK-Lambda CUS500M1 500W AC/DC switch mode power provides 500W with forced air cooling and 300W with 500W peak convection cooling. The CUS500M1 unit is in an open frame version or enclosed version with built-in fan, and has dimensions that are industry standard at 3" x 5". Certified to medical and ITE standards, the CUS500M1 can be used for Class I and Class II (no earth lead) applications. Other applications include telecommunications, broadcasting, LED, and test/measurement. Specifications Rated power 300W convection cooling, 500W peak 500 w forced air cooling ical certification (2 MOPP) Class B conducted and radiated electromagnetic interference Suitable for Class I and Class II installation Single phase input Single output Size3 inches x 5 inches Both open frame and enclosed models available 5 year warranty Applications Medical Industrial Test and measurement Leading Tele Broadcasting Specifications 12V to 48V nominal output voltage range Current range Maximum 6.3A to 25.0A convection cooling Maximum 10.5A to 41.7A for forced air cooling Peak 10.5A to 41.7 Input 22 milliseconds at 300W load 14ms at 500W load 50A typical 230V(AC inrush current, cold start 200µA leakage current 265V(AC), 60Hz 100µA touch current enclosure leakage 85V(AC) ~ 265V(AC) input voltage range Input frequency range 47Hz ~ 63Hz E up to 96% Typical hold up time at 115V(AC) input Output 0.5% line regulation from 85V() to 265V(AC) 1% load regulation (0 ~ 100% load) ±0.02% /°C temperature No minimum load required Environment -20°C to  70°C operating -40°C ~  85°C storage Temperature Relative humidity 10% ~ 95%, no condensation Dimensions 127mm x 76.2mm x 37mm (5 x 3" x 1.46") open frame 157mm x 85mm x 42.5mm (6.18 x 3.35" x 1.67") enclosed
