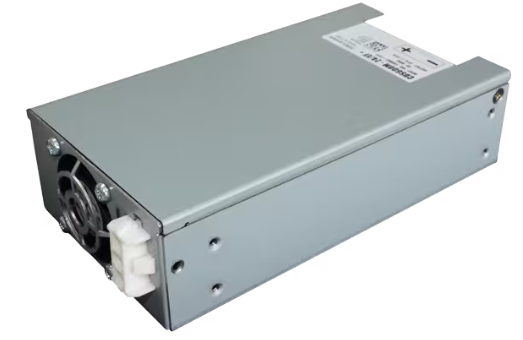

CUS1500M-24 TDK-Lambda Switching Power Supply AC-DC Power Supply

CUS1500M-24 TDK-Lambda Switching Power Supply (AC-DC Power Supply) The CUS500M-24 is a switching power supply (AC-DC power supply) manufactured by TDK-Lambda, belonging to the CUS1500M series‌ Specifications and Characteristics: ‌Output Specifications‌: The output voltage is 24 VDC with an output current of 63 A, and the output power is approximately 1.512 kW.‌ ‌Input Voltage‌: Suitable for 230 VAC input (typical industrial voltage.‌ ‌Enclosure and Mounting‌: Features a closed-frame design with dimensions of 261 mm (length) × 127 mm (width × 63 mm (height), supporting chassis mounting (Chassis Mount).‌ ‌Efficiency and Regulation‌: Conversion efficiency is 88%, good load regulation performance (Regulated), and an operating temperature range of -20°C to  60°C.‌ ‌Application Fields‌: Suitable scenarios such as industrial and medical equipment, featuring high reliability and stability.‌ ‌Weight‌: Approximately 3 kg

TDK-Lambda|TDK agent|TDK power agent|AC-DC power|LAMBDA power|In stock|Longterm orderable TDK launches the 1500W AC-DC power supply CUS1500M for medical and general industrial use. product is equipped with a variable speed fan, providing a quiet power solution for customer applications. The CUS1500M has been certified to medical safety standard - ES/SA/EN60601-1 3rd edition. It has also passed medical certification for 2MOPP isolation (patient protection) between input and output In addition to medical applications, it has been certified to IEC60950-1, making it suitable for a wider range of applications. Main applications Medical/industrial/commercial automation instruments, measuring instruments, ICT equipment, and other general industrial equipment Main features and advantages · Dual fuse · Reduced E noise (complies with Class B noise regulations) · Full-function type Auxiliary power (5V/1A), remote on/off, PF (low voltage   fan alarm, parallel operation) · Safety standards ES/CSA/EN60601-1 Ed3.1 and UL/C/EN60950-1

TDK power supply|TDK-Lambda agent|TDK-Lambda programmable power supply|TDK-Lambda programmable power supply|GENESYS programmable power supply|Lambda power supply
