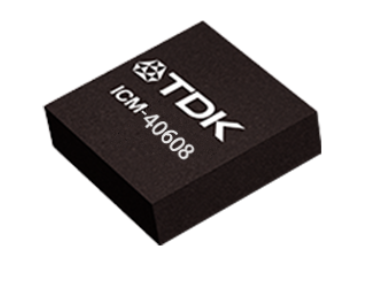

ICM-40608 TDK/INVENSENSE/Yimeisheng Sensor

ICM-40608 TDK/INVENSENSE/Yimeisheng Sensor

Manufacturer: TDK

Product Type: Gyroscope

Sensor type: 3-axis

Sensing axis: X, Y, Z

Range: 15.625 dps to 2000 dps

Output type: Digital

Interface types: I2C, SPI

Power Supply Voltage - Maximum: 3.6 V

Power Supply Voltage - Minimum: 1.7 V

Package/Box: LGA-14

Trademark: TDK InvenSense

Height: 0.91 mm

Length: 3mm

Maximum operating temperature:+85 ° C

Minimum operating temperature: -40 ° C

Product type: Gypscopes

Subcategory: Sensors

Width: 2.5 mm

ICM-40608 is a 6-axis motion sensor that integrates a 3-axis gyroscope and a 3-axis accelerometer, belonging to TDK InvenSense's high integration MEMS sensor series for mainstream and low-cost applications. It achieves a good balance between performance, power consumption, and cost.

A significant feature of ICM-40608 is its ultra-high integration. It is not just a sensor, but also a 'sensor system level chip'. It integrates a powerful programmable processor internally (usually based on ARM Cortex-M0+or similar cores) with 3MB of embedded flash memory.

Due to the algorithm running within the chip, ICM-40608 can directly output processed high-level information (such as quaternions, steps, and activity types) through a simple I ² C/SPI interface, rather than just raw data. This greatly simplifies system design, reduces requirements for main processor performance, decreases software development workload, and shortens product time to market.

ICM-40608 application areas:

Thanks to its "system on chip" feature, ICM-40608 is particularly suitable for applications that require fast integration and simplified main system design:

1. Consumer grade drones and flight controllers: attitude calculation is directly completed at the sensor end, and stable flight attitude data is output to the flight control main chip.

2. Robot Navigation and Balance: Provides real-time heading and attitude reference.

3. Smart homes and IoT devices: achieve automated motion sensing and event triggering without the need for complex upper computer programming.

4. Mid end wearable devices: running algorithms such as step counting and sleep monitoring.

Common models of TDK/INVENSENSE/Yingmeisheng sensors:

ICM-42688-P，IAM-20680HP ，ICM-42688-V，IAM-20680HT ，ICM-42607-C，

ICM-40609-D，ICM-42370-P ，ICM-42607-P ，ICM-42670-P ， IAM-20381HT，

ICS-4074，IAM-20680 ，ICS-41350，ICG-20330 ，ICS-43432，ICM-20600 ，

ICS-43434，ICM-20602 ，ICS-52000，ICM-20648 ，ICM-20689 ，ICM-20948 ，

ICM-40607，ICM-40608，ICM-40627， ICM-42605 ，ICM-42631 ， ICM-42607，

ICM-45605 ， ICM-42670，ICM-45686 ， ICM-42627，ICP-10100 ， IAM-20380，

ICP-10111 ， IAM-20381，ICP-20100 ， MPU-6000，ICS-40212 ， MPU-6050，

ICS-40638 ， MPU-6500，ICS-40720 ， MPU-6509，ICS-40730 ， MPU-6881，

ICS-40740, MPU-9250, etc.
