ICM-42605 6-axis MEMS Motion Tracking Sensor TDK InvenSense

ICM-42605 6-Axis MEMS Motion Tracking Sensor TDK InvenSense

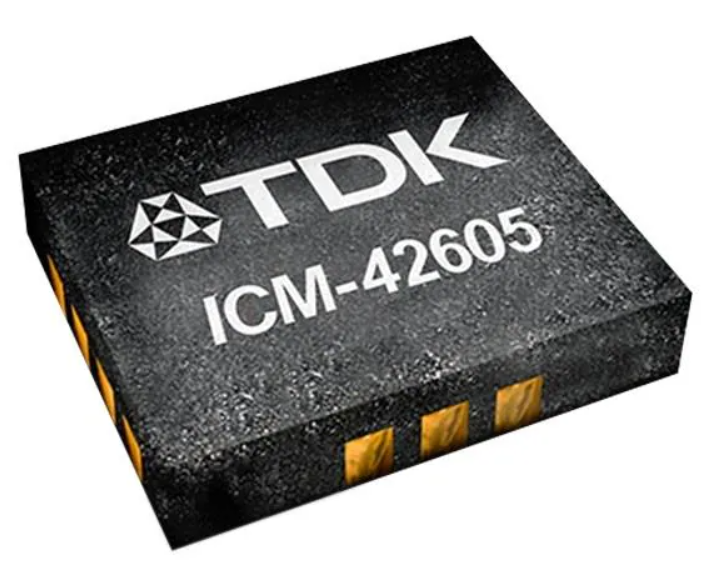

The ICM-42605 is a low-power, high-performance 6-axis MEMS motion tracking sensor produced by TDK InvenSense, integrating a 3-axis gyroscope and a 3-axis accelerometer. It is widely used in wearable devices, the Internet of Things, and virtual reality applications. The device features a 2.5mm x 3mm x 0.91mm 14-pin LGA package, supports multiple communication interfaces including I3C, I2C, and SPI, and delivers excellent noise performance and shock resistance

Sensor Configuration:

Axis Count: 6 axes (3-axis gyroscope + 3-axis accelerometer). ‌‌

Package dimensions: 14-VFLGA module, size 2.5mm x 3mm x 0.91mm. ‌‌

Operating temperature: -40°C to +85°C

Electrical Performance:

Supply voltage: VDD and VDDIO both range from 1.71V to 3.6V

Communication Interface: Supports I3C℠ (up to 12.5MHz), I2C (up to 1MHz), and SPI (up to 24MHz). ‌‌

Power Consumption Mode: In low-noise mode, the 6-axis current consumption is approximately 0.65mA

Precision and Range:

Gyroscope: Programmable full-scale range from ±15.625 dps to ±2000 dps, noise density 3.8 mdps/√Hz. ‌‌

Accelerometer: Programmable full-scale range from ±2g to ±16g, noise density 70μg/√Hz. ‌‌

Reliability: Supports 20,000g shock resistance with a built-in 2KB FIFO buffer to reduce bus traffic. ‌‌

Application scenarios

With its compact size and low power consumption, the ICM-42605 is suitable for space- and energy-sensitive consumer electronics and industrial equipment

Wearable devices: smartwatches and fitness trackers, utilizing their low power consumption to extend battery life. ‌‌

Mobile terminals: Smartphones and tablets, used for screen rotation, step counting, and game control. ‌‌

Virtual Reality: VR headsets and controllers, offering low-latency motion tracking. ‌‌

R1: "Edge computing" must be translated as "edge computing"

Original: Industrial IoT sensors: support motion detection functions in edge computing.

Translation:. ‌‌
