TDK InvenSense ICM-42607 Yingmeisheng Gyroscope Sensor

TDK INVENSENSE | Gyroscope | Sensor | ICM-42607-P

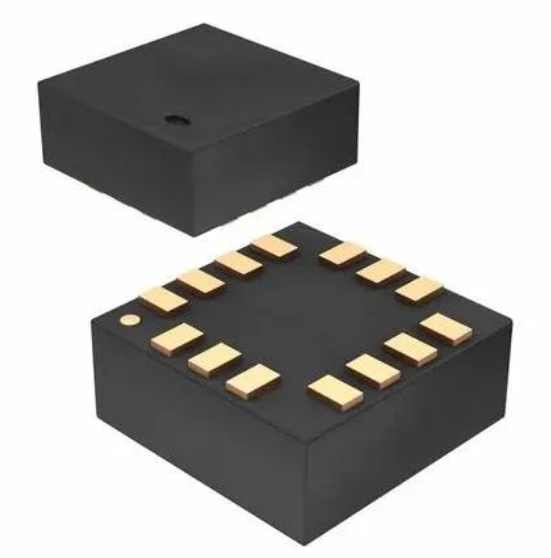

ICM-42607-P is a high-performance 6-axis motion tracking IMU (Inertial Measurement Unit) developed by TDK InvenSense, which integrates a 3-axis MEMS gyroscope and a 3-axis MEMS accelerometer.

Product Features

Ultra low noise and high precision

Gyroscope noise: 7 mdps/√ Hz, accelerometer noise: 100 μ g/√ Hz, the lowest among similar products

Full range adjustable: The gyroscope supports ± 250/500/1000/2000 dps, and the accelerometer supports ± 2/4/8/16g.

Temperature stability: The offset changes very little with temperature, with a gyroscope ZRO temperature drift of only ± 0.015 dps/℃ and an accelerometer zero drift of ± 0.15 mg/℃.

Intelligent power management

Low power mode: The 6-axis working current is only 0.55 mA, and the sleep mode current is as low as 3.5 uA.

Wake up function: Supports "Motion Wake Up" (WoM) and "Significant Motion Detection" (SMD) to extend battery life.

Flexible interface and scalability

Communication interface: Supports I3C (12.5 MHz), I2C (1 MHz), SPI (24 MHz) to meet different system requirements.

FIFO buffer: 2.25 KB storage space, supports burst reads, reduces the load on the main processor.

Programmable interrupts: 2 interrupt pins support multi event mapping, support level/pulse mode, and high/low level triggering.

Application fields:

Wearable devices: step counting, motion pattern recognition (running, swimming), fall detection.

Ear worn devices: head posture tracking, touch gesture recognition, in ear detection.

IoT terminals: asset tracking, vibration monitoring, low-power remote sensing.

Consumer electronics: smartphone screen orientation control, game controller motion capture.
