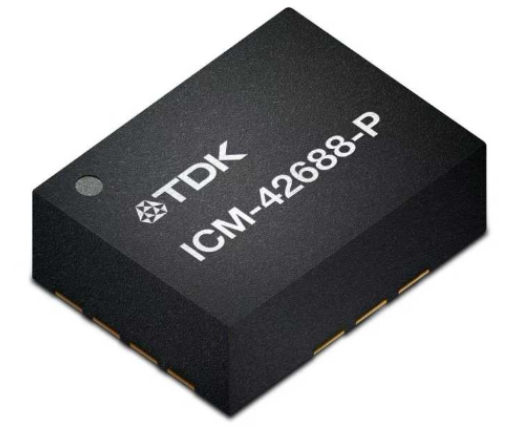

ICM-42688-P

High-Precision Six-Axis MEMS Motion Tracking® Device

The ICM-42688-P is a six-axis inertial measurement unit (IMU) motion tracking device that combines a three-axis gyroscope and a three-axis accelerometer. It features a configurable host interface, supporting I3C℠, I²C, and SPI serial communication.

It is equipped with a 2 kB FIFO and two programmable interrupts, supporting ultra-low-power motion wake-up to minimize system power consumption.

The ICM-42688-P supports high-precision external clock input, which helps reduce system-level sensitivity errors, improves directional measurements in gyroscope data, and decreases the sensitivity of ODR to temperature and device-to-device variations.

The device is the first to support a 20-bit FIFO data format, achieving high data resolution. This FIFO format encapsulates 19-bit gyroscope data and 18-bit accelerometer data.

Other industry-leading features include the InvenSense on-chip APEX motion processing engine for gesture recognition, activity classification, pedometer, programmable digital filters, and embedded temperature sensors.

The device supports a VDD operating range of 1.71V to 3.6V, along with an independent digital input/output power supply VDDIO, also ranging from 1.71V to 3.6V.

Features and Advantages

Gyroscope noise: 2.8 mdps/√ Hz, accelerometer noise: 70 μ g/√ Hz

Low noise mode with six axis current consumption of 0.88 mA

User selectable gyroscope full-size range (DPS): ± 15.6/31.2/62.5/125/250/500/1000/2000

Users can choose the full-scale range of the accelerometer (g): ± 2/4/8/16

User programmable gyroscope, acceleration, and temperature sensors with digital filters

Noise and current consumption:

APEX sports function:

Pedometer, tilt detection, touch detection

Action wake-up, rising to wake-up/sleep, significant motion detection

Host interface: 12.5 MHz I3C VNet, 1 MHz I ² C, 24 MHz SPI
