Manufacturer: TDK

Product Type: IMU Inertial Measurement Unit

RoHS:

Installation style: SMD/SMT

Package/Box: LGA-14

Sensor type: 6-axis

Interface types: I2C, I3C, SPI

Output type: Analog and Digital

Acceleration: 20000 g

Resolution: 16 bits

Sensitivity: 16384 LSB/g

Minimum operating temperature: -40 ° C

Maximum operating temperature:+85 ° C

Power Supply Voltage - Minimum: 1.71 V

Power Supply Voltage - Maximum: 3.6 V

Working power supply current: 420 uA

Encapsulation: Reel

Encapsulation: Cut Tape

Package: MouseReel

Bandwidth: 100 Hz

Trademark: TDK InvenSense

Features: Gyroscope, Accelerometer, Motion, Temperature Sensor

Product Type: IMUs - Inertial Measurement Units

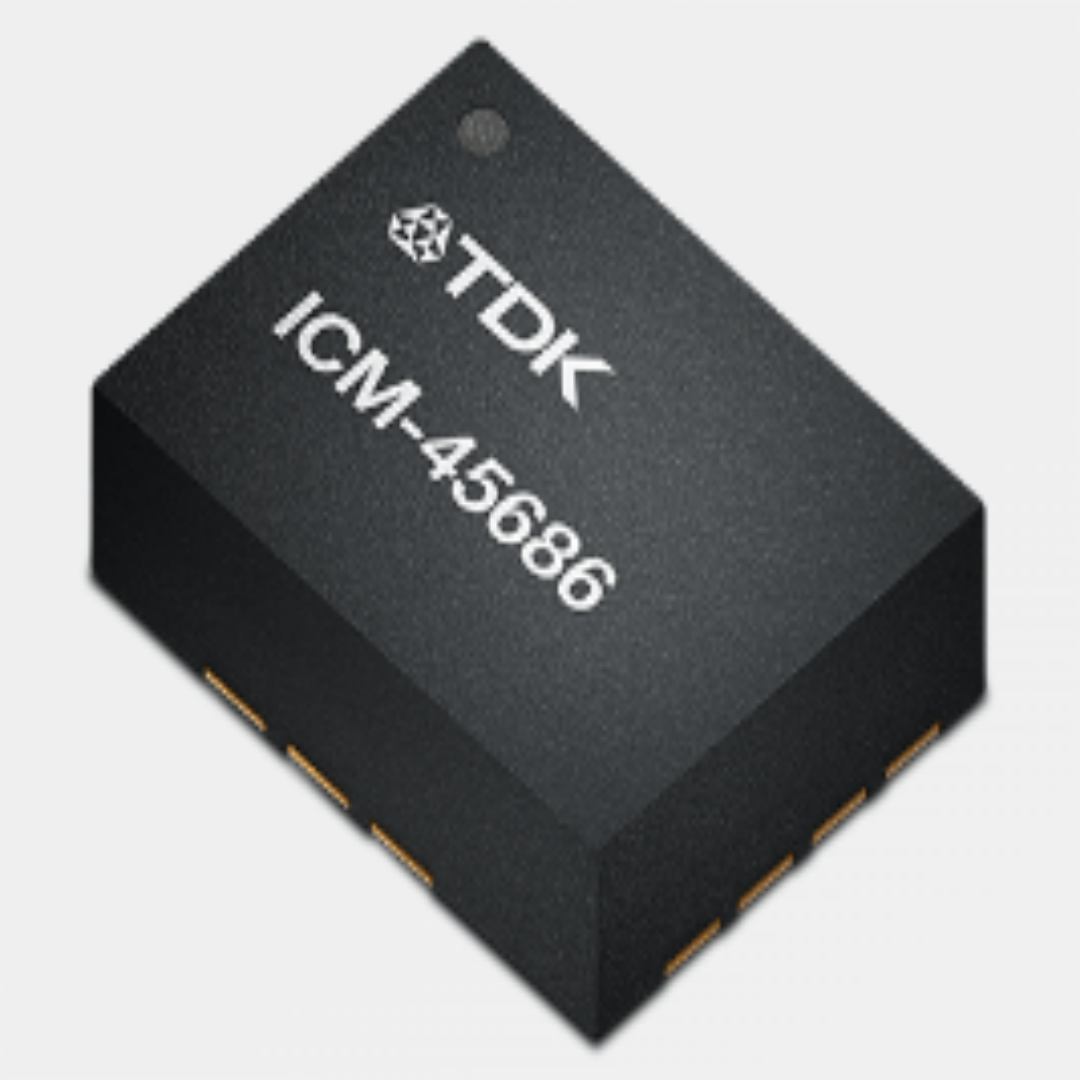

ICM-45686/ICM-45605 6-axis MEMS motion sensor TD InvenSense ICM-45686/ICM-45605 sensor combines 3-axis gyroscope and 3-axis accelerometer in a compact package

TDK Invensense ICM-45686 and ICM-45605 ultra high performance 6-axis MEMS motion sensors adopt balanced rotor (B6) technology and low power consumption. These sensors combine a 3-axis gyroscope and a 3-axis accelerometer in a compact 2.5mm x 3mm x 0.1mm package. BG technology is a gyroscope MEMS architecture that can achieve excellent vibration suppression and temperature stability performance.

The CM-45686 provides a high full-scale range of up to 000 dps and 329.9 temperature stability detection to reduce temperature related drift, as well as high-performance features such as real-time clock input and 18 bit 19 bit high-resolution FIFO.

These low-power 6-axis motion sensors allow the gyroscope to be on for 40% of the time. They also offer a low-power mode for the tourbillon, achieving a 6-axis IMU current consumption of -200 μ A, making it the leader in wearable devices, audible devices, and any battery powered IoT applications.

feature

Excellent vibration suppression with BG technology (low VREViN)

Excellent temperature stability. Reduce sensor to sensor coupling

*Low power consumption, low 6-axis active motion current: 420 pA. Ultra low mode: 2.2 μ A sleep current
