SCA3300-D01 | Murata Sensor | Gyroscope | Digital 3-axis Acceleration Sensor

SCA3300-D01 | Murata Sensor | Gyroscope | Digital 3-axis Acceleration Sensor

Axis: 3

Detection range: Selectable: ± 1.5g, ± 3g, ± 6g

Band width: 10/70Hz

Output mode: SPI

SCA3300-D01 Murata Acceleration Sensor | Drone | Car | Robot | Imu | Inertial Navigation

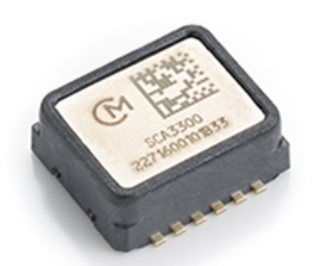

Acceleration sensor three-axis (± 1.5g, ± 3g, ± 6g selectable) SCA3300-D01

Acceleration sensor three-axis (± 1.5g, ± 3g, ± 6g selectable)

SCA3300-D01

Supporting in vehicle, industrial, and medical applications. Used for high-precision acceleration detection and structural health monitoring.

High precision, high stability

Wide range of working temperature and humidity, stable output even under vibration conditions

Impact resistance and improved noise characteristics

low consumption

purpose

vehicle-mounted equipment

industrial equipment

Main parameters

Number of axes: 3

Detection range: ± 1.5g, ± 3g, ± 6g can be selected

Power supply voltage: 3.3V

Interface: SPI

Digital 3-axis accelerometer sensor

Mature technology brings significant performance improvements

Size: 7.6 × 8.6 × 3.3mm (width × length × height)

The measurement range can be selected from 1.5g, 3.0g, and 6.0g

Built in multiple self diagnostic functions

Excellent zero bias stability, extremely low noise, and good anti vibration characteristics

SPI digital interface

Superior mechanical damping characteristics

Temperature range for use: -40~125 ℃

Consumption current 1mA (supply power: 3.0~3.6V)

Mature electrostatic capacitance 3D-MEMS technology

feature

Excellent zero bias stability, low noise, and good linearity

The robust MEMS design enables high performance even in harsh environments

Even under vibration conditions, high-precision output can be achieved

Superior impact resistance

Representative application areas include:

#Business level

#Angle measurement control device

Tilt compensation

#Inertial measurement devices used in harsh environments

#Motion analysis/control

#Navigation system

Unmanned Aerial Vehicle Inertial Measurement Units (IMUs)

#Accelerometer # Combined Inertial Navigation System # Measurement G Instrument Core Unit

Sensor gyroscope

SCA3400-D01

SCH16T-K10

SCH16T-K01

SCA3300-D01

SCL3300-D01

SCL3400-D01

SCH1633-D01

Gyroscope, accelerometer, inertial measurement unit IMU, integrated inertial navigation system, core unit of measuring G instrument, etc. Widely used in fields such as autonomous driving (cars, ships, aircraft), robotics, healthcare, exploration and measurement, and industrial automation.
