Murata 6DoF Gyro Accelerometer Sensor SCH16T-K01 | Multi-Functional IMU

SCH16T-K01 | Murata 6DoF Gyroscope Accelerometer | Multi-functional IMU

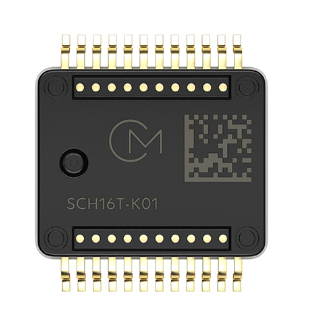

12mm×14mm×3mm SOIC-24 inverted package, footprint area on PCB <170mm²

Detection range: SCH16T-K01 and SCH16T-K20/±8g, ±300dps

Detection Range: SCH16T-K10/±16g, ±2000dps

Amplitude response: 13, 30, 68, 235, 280, or 370 Hz

Power supply voltage of 3.0 to 3.6V, I/O power supply of 1.7 to 3.6V

Operating temperature range from -40°C to 110°C

SafeSPI2.0

Axis: Acceleration:3 Gyroscope:3

Auxiliary digital accelerometer channel, with a dynamic range up to ±26g (applicable only to SCH16T-K10 and SCH16T-K01)

The gyroscope bias instability is as low as 0.3°/h (SCH16T-K01 and SCH16T-K20) or 2°/h (SCH16T-K10)

The gyroscope noise density level is as low as 0.4 m°/s/√Hz (for SCH16T-K01 and SCH16T-K20) or 6 m°/s/√Hz (for SCH16T-K10)

The output data can be selected as 20-bit or 16-bit via the SPI frame

The cutting-edge self-diagnostic system utilizes over 200 internal monitoring signals to automatically report sensor status in each SPI frame

Certification Based on the AEC-Q100 Standard

Robust SOIC plastic package compliant with RoHS standards, suitable for lead-free soldering and SMD installation

Proven capacitive 3D-MEMS technology

SCH16T-K01 – Multi-functional High-Performance Universal IMU

SCH16T-K10 – Gyroscopic Measurement Range Extension Model, Suitable for High-Speed Measurements

SCH16T-K20 – A new product featuring significantly enhanced performance of gyroscopes and accelerometers.

Representative application areas include:

High-precision inertial measurement unit (IMU)

Inertial Navigation and Positioning

Drone Flight Controller

Dynamic tilt measurement

High-precision robot control and UAV

Humanoid robot control

Camera stabilized

Unmanned aerial vehicle inertial measurement units (IMUs)

#Accelerometer#Integrated Inertial Navigation System#G Measurement Instrument Core Unit

Sensor gyroscope

SCA3400-D01

SCH16T-K10

SCH16T-K01

SCA3300-D01

SCL3300-D01

SCL3400-D01

SCH1633-D01

Gyroscope, accelerometer, Inertial Measurement Unit (IMU), integrated inertial navigation system, core units of measuring G instruments, and so on.
