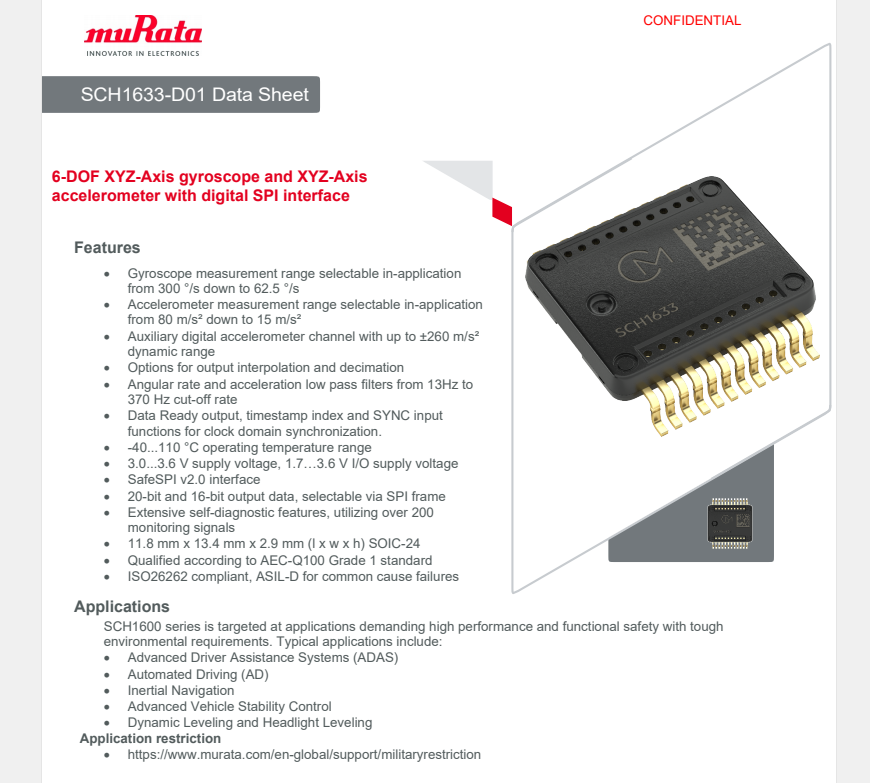

SCH1633-D01 | Murata Sensor | Gyroscope | Accelerometer

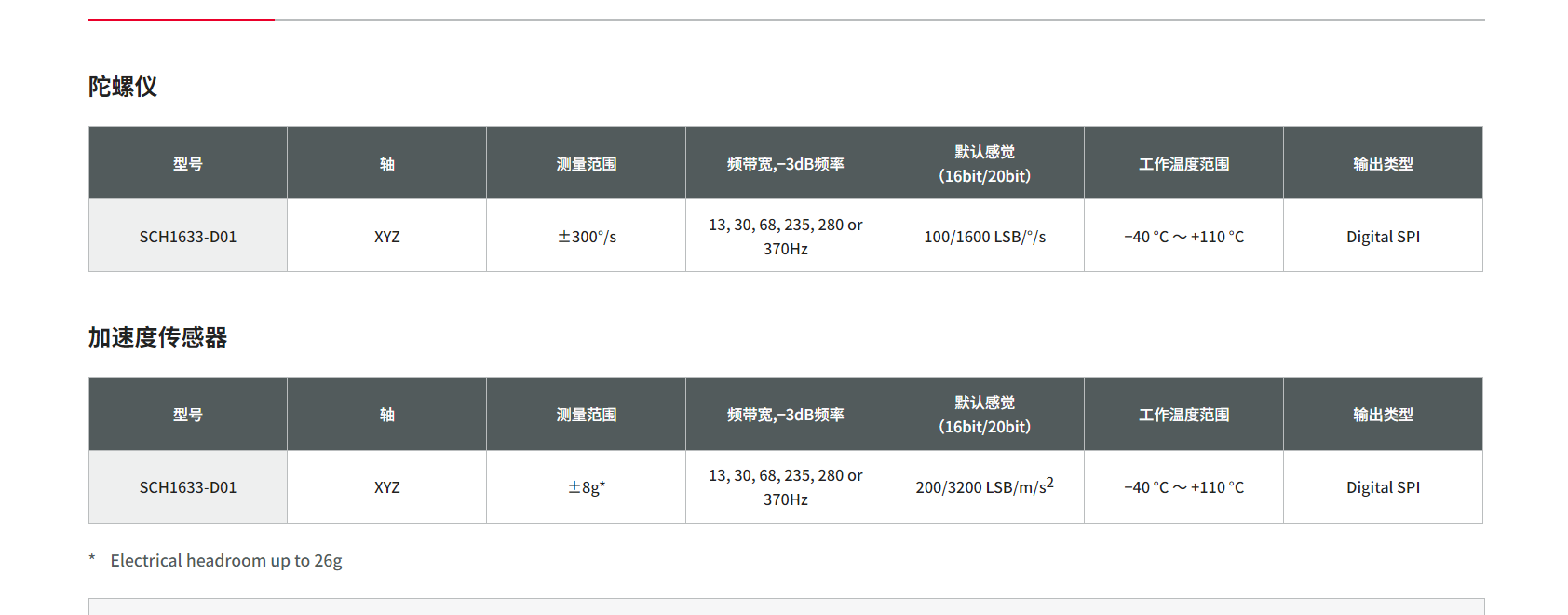

Measurement range of angular velocity within ± 300 °/s

± 8g acceleration measurement range

Redundant digital accelerometer channel with dynamic range up to ± 26g

The zero bias instability of the gyroscope can be as low as 0.5 °/h, and the angle random walk can be as low as 0.03 °/√ Hz

Output interpolation and extraction options

Data ready output, timestamp index, and SYNC input function for clock domain synchronization

Operating temperature range of -40 to 110 ° C

3.0 to 3.6V power supply voltage, 1.7 to 3.6V I/O power supply

SafeSPI v2.0 interface

20 bit and 16 bit output data can be selected through SPI frames

Wide range self diagnostic function, utilizing over 200 monitoring signals

11.8mm × 13.4mm × 2.9mm (length × width × height) SOIC-24 inverted shell

Compliant with AEC-Q100 Level 1 certification

Durable SOIC plastic packaging that complies with RoHS standards, suitable for lead-free soldering processes and SMD installations

Verified capacitive 3D-MEMS technology

Representative application areas include:

Advanced Driver Assistance Systems (ADAS)

Autonomous driving (AD)

inertial navigation

Advanced vehicle stability control

Dynamic leveling and headlight leveling
