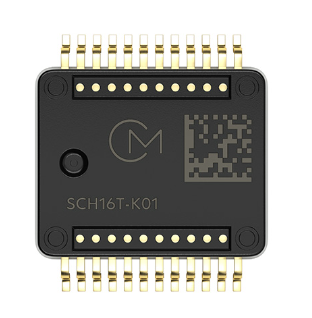

SCH16T-K10 | SCH16T-K01 | SCH16T-K20 | Murata | 6DoF Gyroscope Accelerometer

Angular rate measurement range of ±2000°/s (SCH16T-K10) or ±300°/s (SCH16T-K01 and SCH16T-K20)

Acceleration measurement range of ±16g (SCH16T-K10) or ±8g (SCH16T-K01 and SCH16T-K20)

Auxiliary digital accelerometer channel, with a dynamic range of up to ±26g (limited to SCH16T-K10 and SCH16T-K01)

The gyroscope bias instability is as low as 0.3°/h (SCH16T-K01 and SCH16T-K20) or 2°/h (SCH16T-K10)

The gyroscope noise density level is as low as 0.4 m°/s/√Hz (SCH16T-K01 and SCH16T-K20) or 6 m°/s/√Hz (SCH16T-K10)

Operating temperature range from -40°C to 110°C

Power supply voltage of 3.0 to 3.6V, I/O power supply of 1.7 to 3.6V

SafeSPI v2.0 Interface

SCH16T series PCB products:

SCH16T-K01-PCB

Gyroscope triaxial ±300 °/s + triaxial accelerometer ±8g

SCH16T-K10-PCB

Gyroscope: ±2000 °/s (3-axis) + Accelerometer: ±16g (3-axis)

SCH16T-K20-PCB

Gyroscope 3-axis ±300 °/s + 3-axis accelerometer ±8g

Representative application areas include:

High-precision Inertial Measurement Unit (IMU)

Inertial Navigation and Positioning

Drone Flight Controller

Dynamic inclination measurement

High-precision robotic control and UAV

Humanoid robot control

camera stabilization
