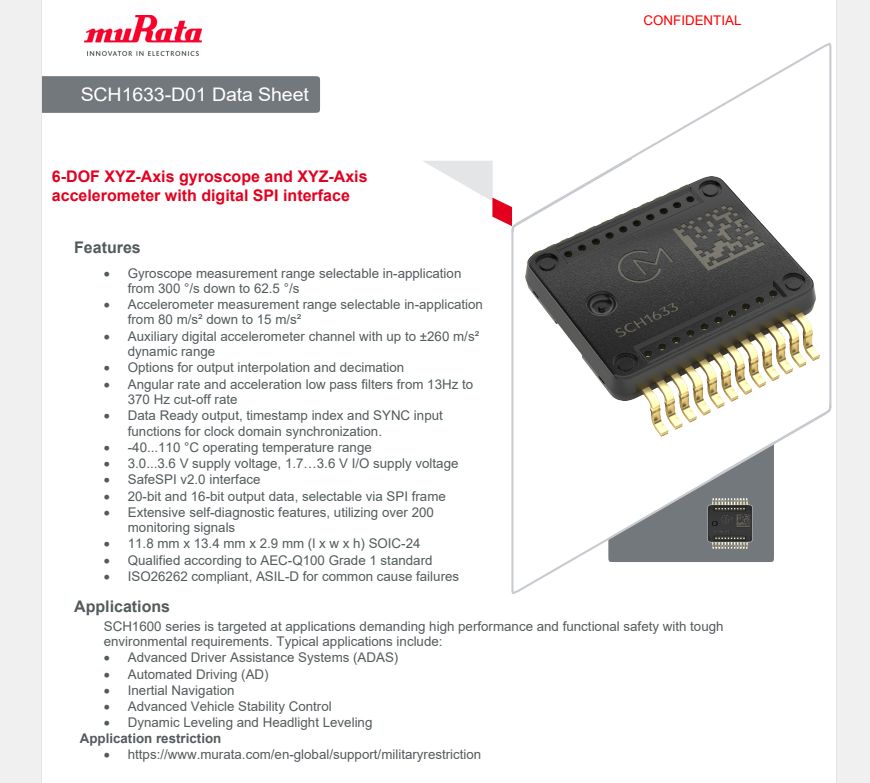

SCH1633-D01

MEMS inertial sensor

Successfully advancing the high-precision development of inertial sensors!#SCH1633

#MEMS Inertial Sensor IMU Inertial Navigation Attitude Calculation Motion Capture

Focused on the research of various IMU algorithms and related applications, modules, and solutions. #DomainDrivenDesign #IMU

#mems

SCH1633-D01 | Gyroscope | Accelerometer | Murata | Murata

Angular rate measurement range of ±300°/s

Acceleration measurement range of ±8g

Redundant digital accelerometer channels with a dynamic range up to ±26g

The gyroscope's bias instability is as low as 0.5°/h, and its angle random walk can be as low as 0.03°/√Hz

Output interpolation and extraction options

Data-ready output, timestamp index, and SYNC input functions for clock domain synchronization

Operating temperature range of -40 to 110°C

Supply voltage of 3.0 to 3.6V, I/O power of 1.7 to 3.6V

SafeSPI v2.0 Interface

The output data can be selected as 20-bit or 16-bit via SPI frame

The extensive self-diagnostic function utilizes over 200 monitoring signals

11.8mm × 13.4mm × 2.9mm (Length × Width × Height) SOIC-24 Inverted Package

Compliant with AEC-Q100 Grade 1 certification

Robust SOIC plastic package compliant with RoHS standards, suitable for lead-free soldering and SMD mounting

Verified capacitive 3D-MEMS technology

Representative application areas include:

Advanced Driving Assistance System (ADAS)

Autonomous Driving (AD)

inertial navigation

Advanced Vehicle Stability Control

Dynamic leveling and headlight leveling
