Angular velocity measurement range of ± 2000 °/s (SCH16T-K10) or ± 300 °/s (SCH16T-K01 and SCH16T-K20)

Acceleration measurement range of ± 16g (SCH16T-K10) or ± 8g (SCH16T-K01 and SCH16T-K20)

Auxiliary digital accelerometer channel, dynamic range up to ± 26g (limited to SCH16T-K10 and SCH16T-K01 only)

Gyroscope bias instability as low as 0.3 °/h (SCH16T-K01 and SCH16T-K20) or 2 °/h (SCH16T-K10)

The noise density level of the gyroscope is as low as 0.4m °/s/√ Hz (SCH16T-K01 and SCH16T-K20) or 6m °/s/√ Hz (SCH16T-K10)

Operating temperature range of -40 to 110 ° C

3.0 to 3.6V power supply voltage, 1.7 to 3.6V I/O power supply

SafeSPI v2.0 interface

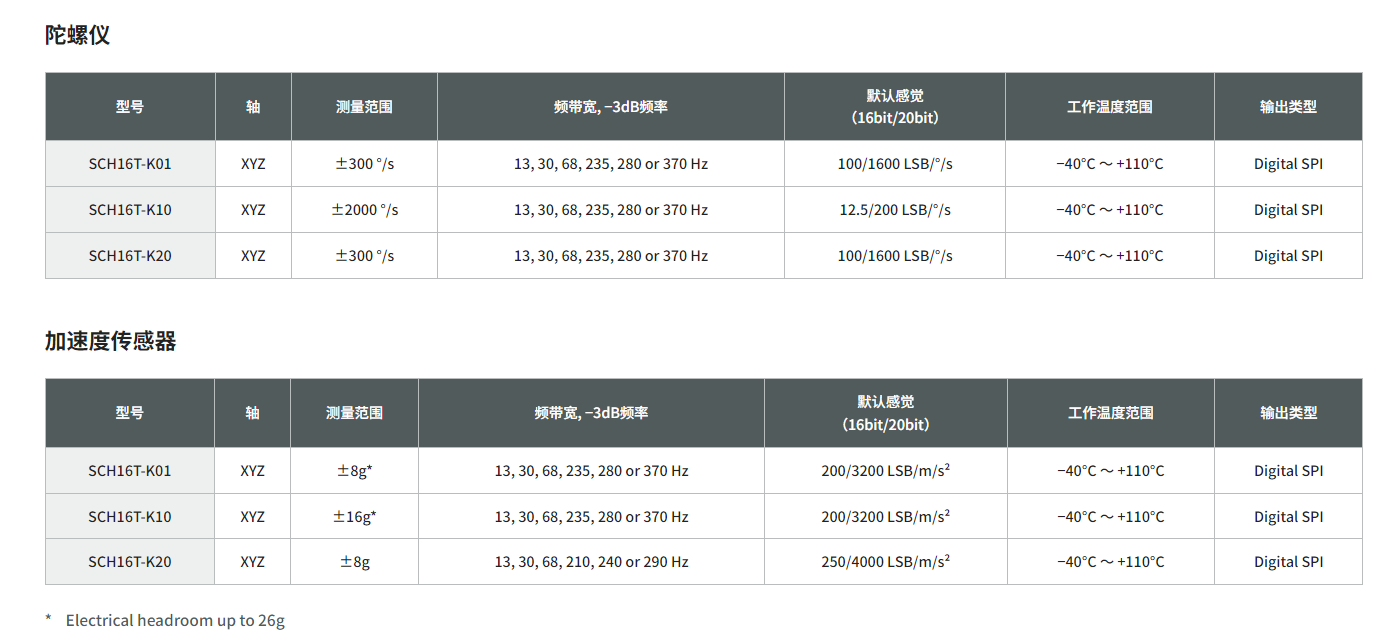

SCH16T series PCB products:

SCH16T-K01-PCB

Gyroscope three-axis ± 300 °/s+three-axis acceleration ± 8g

SCH16T-K10-PCB

Gyroscope three-axis ± 2000 °/s+three-axis acceleration ± 16g

SCH16T-K20-PCB

Gyroscope three-axis ± 300 °/s+three-axis acceleration ± 8g

Representative application areas include:

High precision Inertial Measurement Unit (IMU)

Inertial Navigation and Positioning

UAV flight controller

Dynamic inclination measurement

High precision robot control and UAV

Humanoid robot control

camera stabilization
