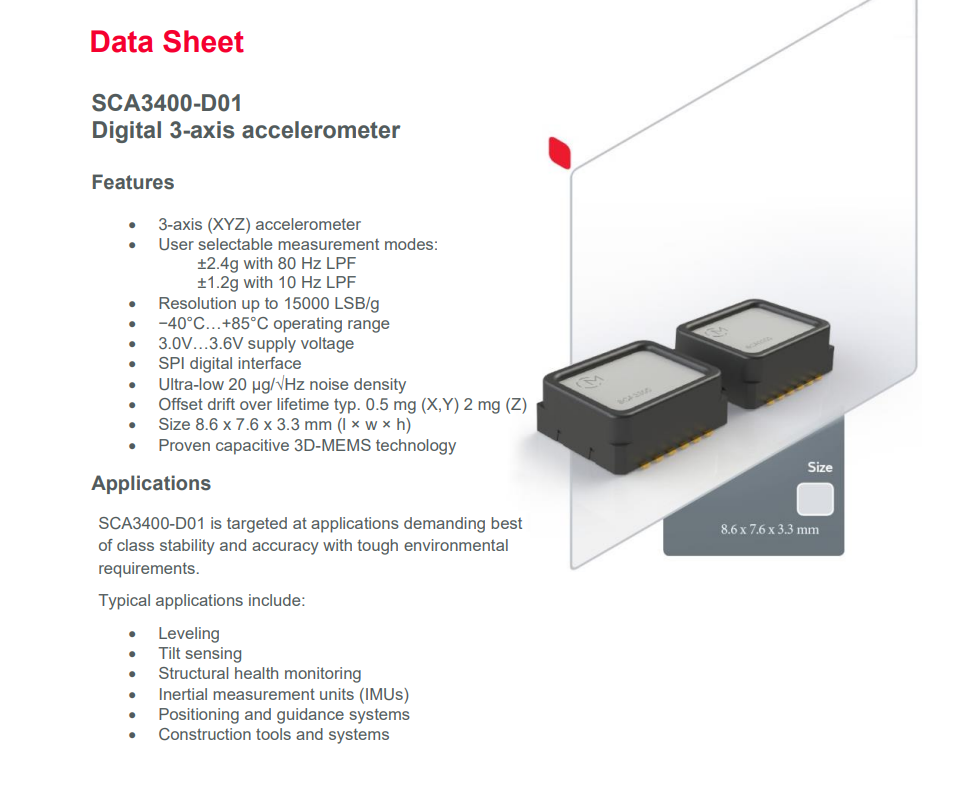

SCA3400-D01 | 3-axis accelerometer | Murata | Murata | accelerometer gyroscope

SCA3400-D01 | 3-axis accelerometer | Murata | Murata | accelerometer gyroscope

Typical misalignment drift within the entire service life cycle ≤ 0.5mg (X, Y) ≤ 2mg (Z)

Noise density as low as 20 µ g √ Hz, achieving high measurement resolution

Two user selectable measurement modes can be used to optimize sensor performance based on different applications and their requirements

Mature capacitive 3D-MEMS technology

Size: 8.6 × 7.6 × 3.3 mm (l × w × h)

3.0V~3.6V power supply voltage

Cutting edge self diagnostic function

12 pin pre formed shell, suitable for SMD mounting

Compliant with RoHS and EV directives

Representative application areas include:

Structural Health Monitoring (SHM)

Leveling and platform stabilization

Tilt sensor

Inertial Measurement Unit (IMU)

machine control

Positioning and Navigation System

Building Tools and Systems

Murata gyroscope tilt acceleration

SCA3400-D01

SCH16T-K10

SCH16T-K01

SCA3300-D01

SCL3300-D01

SCL3400-D01

SCH1633-D01
