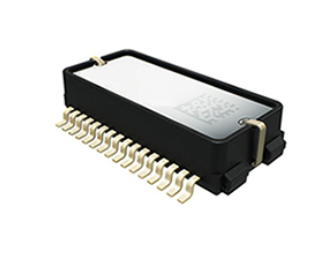

SCHA63T Murata Industrial 6DoF Gyroscope Acceleration Sensor Integrated Unit

SCHA63T-K01

SCHA63T-K03

Single in-line package 6DOF component

Cross axis calibration ensures that the orthogonal error of temperature is less than 0.14 ° C

Zero bias instability as low as 1 °/h level

Gyroscope noise density: 0.0014 °/s/√ Hz

Stable offset and sensitivity across the entire temperature range

Excellent linear and vibration performance

Self detection function applicable to multiple fields

Angular velocity measurement range: ± 300 °/s

Acceleration measurement range: ± 6g

Working temperature range: -40 ° C to+110 ° C

Power supply voltage: 3.0V~3.6V

Dimensions of sturdy SOIC housing components that comply with RoHS standards:

19.71 mm x 12.15 mm x 4.6 mm (length x width x height), 32 pins

Can be used in safety critical application areas

feature

The SCHA63T sensor is a single in package 6DoF component unique to Murata with this level of performance. In the past, this level of inertial sensor could only perform on expensive high-end IMU modules. This sensor can achieve centimeter level accuracy in mechanical dynamic and positioning sensing, and helps ensure a safe and stable design.

application

SCHA63T can be applied in application fields that pursue high performance under harsh environmental conditions.

Representative application areas include:

Inertial Measurement Units (IMUs)

Navigation and positioning

Machine control and guidance

Dynamic inclination angle

Robot control and unmanned aerial vehicles

Sensor board SCHA63T-K03-PCB
