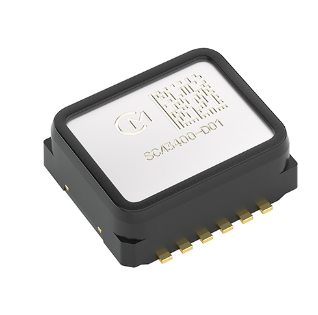

Murata SCA3400 high-performance three-axis accelerometer

The Murata SCA3400 high-performance three-axis (XYZ) accelerometer combines robustness, low noise density, good linearity, and high offset stability in temperature and time. The SCA3400-D01 accelerometer is designed specifically for industrial applications that require stability and accuracy in harsh environments. During the lifecycle of these modules, the offset drift of the X-axis and Y-axis is 0.5mg, and the offset drift of the Z-axis is 2mg. The misalignment error caused by changes in operating temperature is 2mg on the X-axis and Y-axis, and 3mg on the Z-axis. Murata's SCA3400 accelerometer exhibits excellent performance in terms of accuracy, with a linear error of 1mg in the 1.2g range and a noise density of 20 µ g/√ Hz. Other features include user selectable dynamic range, low-pass filtering, self diagnosis, and mature capacitive 3D-MEMS technology. The application areas include structural health monitoring (SHM), machine control, construction tools and systems, and inertial measurement units (IMU).

feature

Excellent offset performance under long-term and temperature conditions

Ultra low noise density, capable of achieving high measurement resolution

Stability performance under mechanical vibration

Durable and sturdy design

Two user selectable measurement modes to optimize sensor performance for different applications and their requirements

application

SHM

Horizontal measurement and platform stability

Tilt sensor

IMU

Machine control

Positioning and guidance system

Construction tools and systems

specification

Typical offset drift within service life ≤ 0.5mg (X, Y) ≤ 2mg (Z)

Ultra low noise density as low as 20 µ g √ Hz, capable of achieving high measurement resolution

Multiple measurement modes available for users to choose from

± 2.4g with 80Hz low-pass filter

± 1.2g, with 10Hz low-pass filter

Resolution up to 15000LSB/g

Mature capacitive 3D-MEMS technology

Power supply voltage: 3 V to 3.6 V

SPI digital interface

Advanced self diagnostic features

12 pin pre formed casing, suitable for SMD installation

Dimensions: 8.6 mm x 7.6 mm x 3.3 mm (length x width x height)

Working temperature range: -40 ° C to+85 ° C

Compatible with RoHS and EV directives
