PKGS-25SXAP1-R | Murata | Vibration Sensor

PKGS-25SXAP1-R | Murata | Vibration Sensor

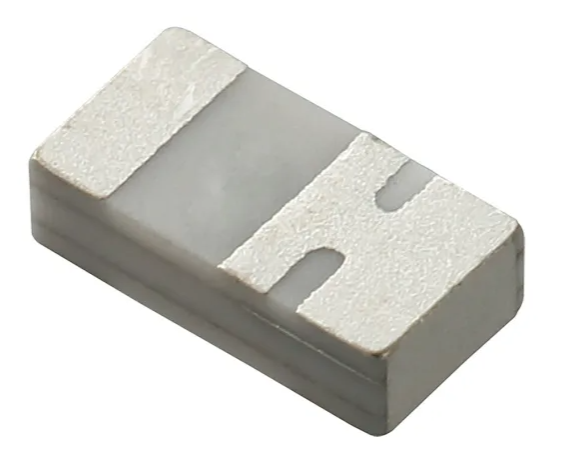

The PKGS-25SXAP1-R is a vibration and shock detection device designed and manufactured by Murata Manufacturing,

The core characteristics of sensors include:

Charge sensitivity: typical value is 0.35 pC/G (equivalent to 35.7 fC/(m/s²)), with a measurement range of ±50G;

Capacitance: Typical 740 pF, insulation resistance no less than 100 MΩ;

Frequency Response: Resonant frequency approximately 27 kHz, typical nonlinearity 1%;

From a mechanical perspective: The spindle inclination angle is 25°;

Temperature Range: Operating temperature -40°C to 85°C, same for storage. ‌

Physical Specifications and Packaging: The sensor dimensions are 3.2 mm (length) × 2.0 mm (width) × 1.05 mm (height), featuring a 1208 size (3020 Metric) SMD package. The standard packaging is 3000 pieces/roll tape, with a weight of approximately 61.321 mg. ‌

The Murata series impact-resistant sensors are designed for high-performance acceleration sensing in environments with vibration and mechanical shock. They are suitable for a wide range of applications, including consumer electronics, healthcare, safety systems, tire pressure monitoring, and industrial automation.
