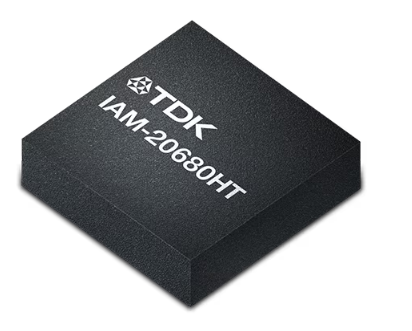

IAM-20680HT||6-axis motion tracking chip|TDK-InvenSense

IAM-20680HT||6-axis motion tracking chip|TDK-InvenSense The IAM20680HT is a 6-axis motion tracking device for automotive non-safety applications, integrating a 3-axis gyroscope and a 3axis accelerometer in a 3x3x0.75mm3 (16-pin LGA) package. It also features a 4096- FIFO buffer that allows the processor to burst read sensor data, achieving low power consumption. The gyroscope supports selectable ranges via register configuration, including ±25 dps, ±500 dps, ±1000 dps, and ±2000 dps. The accelerometer can also be configured with a range 2g, ±4g, ±8g, and ±16g. Of course, the chip also has other industry-leading features, such as a 1-bit ADC, configurable digital filters, an embedded temperature sensor (die temperature), and configurable interrupts. Recommended application scenarios Auxiliary tool for systems Elevator door motion detection Camera stability and vision systems HUD Automobile alarms Insured vehicle tracking Telematics Main features 1. Gyscope Digital output, 4-stage range configurable, and integrated 16-bit ADC Configurable low-pass digital filter Factory-calibrated sensitivity factor Self-test support 2. Accelerometer Digital output, 4-stage range configurable, and integrated 16-bit ADC Two config interrupts Low-power mode support for WOM motion wake-up terminal
