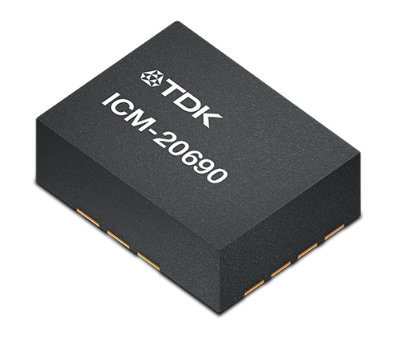

TDK-InvenSense ICM-20690 Six-axis motion tracking device

TDK-InvenSense ICM-20690 Six-axis motion tracking device

The ICM-2060 is a six-axis motion tracking device with a primary interface for UI and an auxiliary interface that can be configured as a SPI slave device for optical image stabilization (OIS applications or an I2C master device to support other sensors.

Features - Gyroscope:

Digital output X, Y, and Z-axis angular velocity sensor (gyscope), with independently programmable full-scale range of ±31.25, ±62,5, ±125, ±250, ±00, ±1000, and ±2000 degrees/sec for UI and OIS paths

Integrated 16-bit ADC per axisDigital programmable low-pass filter

Low power gyroscope operation

Factory calibrated sensitivity scale factor

Features - Accelerometer:

Digital output X-axis, Y-, and Z-axis accelerometer, with independently programmable full-scale range of ±2g, ±4g, ±8g, and ±16g for UI path ±1g, ±2g, ±4g, and ±8g for OIS path

Integrated 16-bit ADC per axis

User programmablerupts

Motion wake interrupt for low power operation of application processor

Applications:

Smartphones and tablets; Head-mounted displays; Wearable
