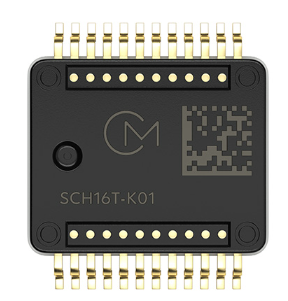

SCH16T-K01|UAV|Automotive|Murata Sensor Murata Gyroscope

SCH16T-K01|Gyroscope|Murata Sensor Murata Sensor|S16T-K01|Gyroscope ±2000 °/s (SCH16T-K10) or ±30 °/s (SCH16T-K01) angular rate measurement range ±16g (SCH16T-K10) or ±g (SCH16T-K01) acceleration measurement range Auxiliary digital accelerometer channel with a dynamic range up to ±26g Low gyro bias instability of 0.3 °/h (SCH16T-K01) or 2 °/h (SCH16T-K1) Low gyroscope noise density level of 0.4 m°/s/√Hz (SCH16T-K01) or 6 m/s/√Hz (SCH16T-K10) Output interpolation and decimation options Data ready output, timestamp index, and SYNC input function for domain synchronization −40 to 110°C operating temperature range 3.0 to 3.6V supply voltage, 1.7 to 36V I/O supply SafeSPI v2.0 interface 20-bit and 16-bit output data selectable via SPI frame Extensive-diagnostic functions 12mm×14mm×3mm (L×W×H) SOIC-24 inverted package, PCB footprint area <10mm² Certified to AEC-Q100 standard Robust SOIC plastic package that meets RoHS standard, suitable for lead-free welding processes and SMD mounting Proven capacitive 3D-MEMS technology Features The SCH16T series provides ideal 6DoF performance in a single package for industrial. The series includes two variants: SCH16T-K01 for high-performance gyroscope measurements, and SCH16T-K10 for-rate measurements. The series offers outstanding linearity and offset stability throughout the temperature and measurement range, enabling centimeter-level accurate mechanical dynamics and position sensing in harsh environments.Applications The SCH16T can be applied to applications that pursue high-performance in demanding environmental conditions. Representative application areas include: Inertial Measure Units (IMUs) Inertial Navigation and Positioning Drone flight controllers Machine control and guidance Dynamic tilt Robot control and
