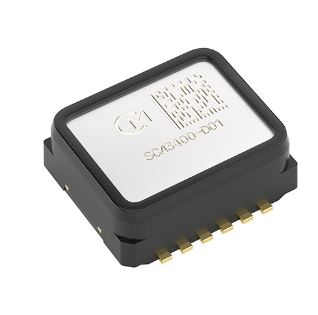

SCA3400-D01 Murata gyroscope | Automotive | Robotics | IMU | Inertial navigation |

Murata Gyroscope|SCA3400-D01|Sensor SCA340-D01|Gyroscope|Murata Sensor The SCL3400 is suitable for applications requiring high stability in harsh environmental conditions. Main cases: structural health monitoring (SHM) leveling and platform stability tilt compensation inertial measurement unit (IMU) positioning navigation system evaluation board Features High-performance 2axis tilt MEMS sensor True tilt output: In addition to the conventional acceleration output, it can also provide angular noise low, bias stability good Advanced self-diagnostic functions compatible with the strong building RoHS and ELV directives Based on Murata's proven 3D-MEMS sensor technology, the SCL3300-01 is a three-axis (XYZ) tilt meter with four user-selectable measurement modes, which can be used to optimize the performance of the sensor to meet applications and needs. This highly integrated device includes a hybrid signal ASIC for signal processing, as well as a flexible digital interface, eliminating the need for external ADC and size, power consumption and design complexity. The SCL3300-D01 features a complex tilt conversion internal sensor, which makes it easy and robust application software reduces the engineering work required. Robust sensor design and advanced self-diagnostic functions ensure that the device's output can always be relied upon. The SCL330-D01 tilt meter provides ±90° tilt angle output, simplifying the use of measurement software and equipment. The operating temperature range of the device is from40°C to  125°C, and the typical offset temperature drift over the entire operating temperature range is less than ±10 mg. The ultra- noise density is as low as 0.001°/√Hz, with high measurement resolution. Since the typical sleep mode current is only 3 μA, the S3300-D01 operates with a 3.3 V power supply and is very suitable for battery-powered use in remote locations, including IoT-based. Installed in a 12-pin pre-molded plastic housing (8.6mm x 7.6mm x 3.3mm), uring reliable operation over the product's life cycle, the tilt meter is suitable for SMD mounting and is compatible with RoHS and ELV directives. Gyro|SCA3400-D01|SCH16T-K10|SCH16T-K01 SCA3300D01|SCL3300-D01|SCL3400-D01|SCH1633-D01A3400-D01           SCH16T-K10   SCH16T-K01 SCA330-D01   SCL3300-D01 SCL3400-D01   SCH163-D01 Tilt sensor (three-axis accelerometer) SCL3300-D01 For industrial and construction machinery: inertial detection, level, tilt compensation, for mechanical control, structural health monitoring Determination mode can be selected from 4 modes according to the purpose and required
