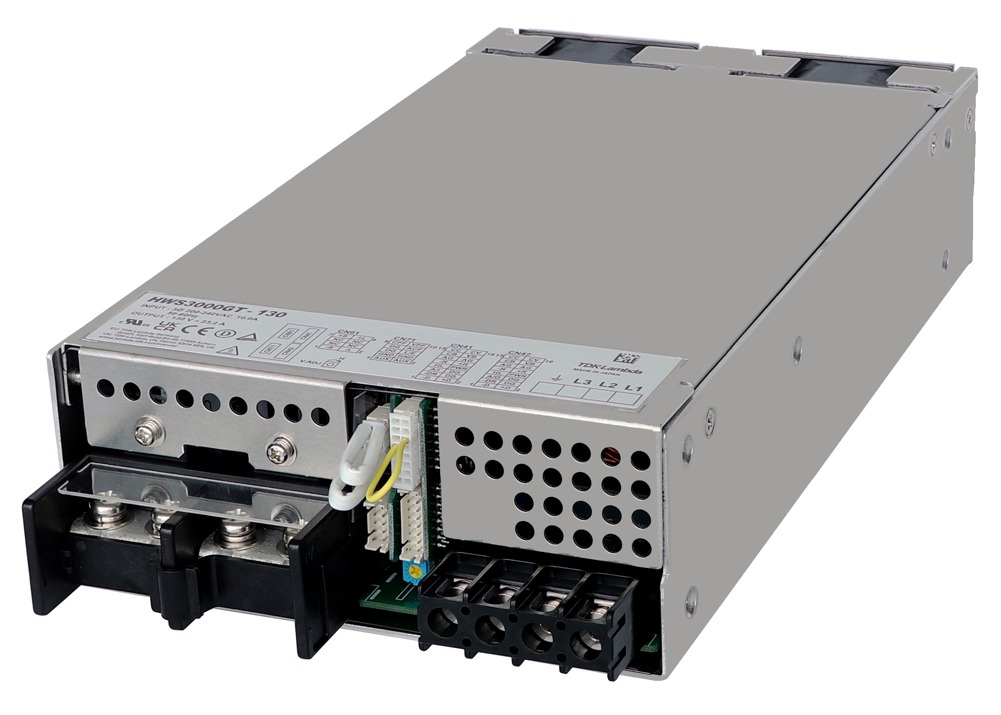

HWS3000GT-130 Three-Phase Input 3000W Programmable CVCC AC-DC Power Supply

Electrical Characteristics

Input    3-phase

Input Voltage Range [AC]       170～265

 VacInput Voltage Range [DC]    Efficiency93% Typ

.Rated Output Voltage [DC]          130 Vdc

Output Voltage Range [DC]        156.0 Vdc

 Max.Maximum Output Current    23.2 A

Maximum Output Power   3016 W

Application Scope (Key Scenarios)

• Semiconductor Manufacturing Equipment: Power supply for wafer, photolithography and etching equipment

• Industrial Equipment: Laser processing, RF amplifiers, printing machines, PLC and servo systems

• Test & Measurement Equipment: ATE test systems, power supply testing, burn-in testing

• Battery Charging / Formation: High-voltage battery pack (e.g. energy storage / electric vehicle) charging, electrolysis equipment

• New Energy & Industrial Power Supplies: Photovoltaic / energy storage inverters, UPS, industrial power modules, N+1 redundant systems

IV. Model Explanation (Easy Understanding)

• HWS: Series name (High‑Wattage Supply)

• 3000: Power rating 3000W

• G: HWS‑G series (programmable)

• T: Three‑phase input

• 130: Nominal output voltage 130V
