SCH16T-K10 Murata | 6DoF Gyroscope Acceleration Sensor | MEMS Gyroscope | SCH16T-K01

Angular rate measurement range of ±2000°/s (SCH16T-K10) or ±300°/s (SCH16T-K01 and SCH16T-K20)

Acceleration measurement range of ±16g (SCH16T-K10) or ±8g (SCH16T-K01 and SCH16T-K20)

Auxiliary digital accelerometer channel, with a high dynamic range of up to ±26g (limited to SCH16T-K10 and SCH16T-K01).

The gyroscope bias instability is as low as 0.3°/h (for SCH16T-K01 and SCH16T-K20) or 2°/h (for SCH16T-K10).

The gyroscope noise density is as low as 0.4 m°/s/√Hz (for SCH16T-K01 and SCH16T-K20) or 6 m°/s/√Hz (for SCH16T-K10).

Output interpolation and decimation options

Data readiness output, timestamp indexing, and SYNC input functions for clock domain synchronization.

Operating temperature range from -40°C to 110°C

Power supply voltage of 3.0 to 3.6V, and I/O power supply of 1.7 to 3.6V.

SafeSPI v2.0 Interface

Output data in 20-bit and 16-bit formats can be selected via SPI frame selection.

The cutting-edge self-diagnosis system utilizes over 200 internal monitoring signals to automatically report sensor status in each SPI frame.

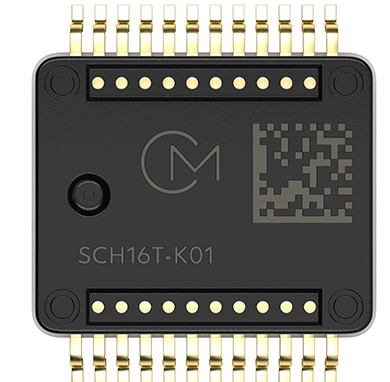

12mm × 14mm × 3mm (length × width × height), SOIC-24 inverted package, with a PCB footprint area of less than 170 mm².

Certification based on the AEC-Q100 standard

Robust SOIC plastic package compliant with RoHS standards, suitable for lead-free soldering processes and SMD mounting.

Verified capacitive 3D-MEMS technology
