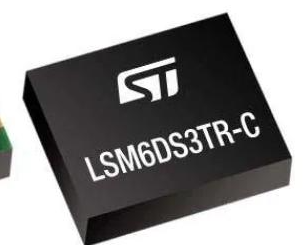

LSM6DS3TR-C | ST (STMicroelectronics) | Category: iNEMO 6-axis IMU (3-axis accelerometer + 3-axis gyroscope, 6DoF inertial module)

✅Core Electrical Parameters

Supply voltage: VDD 1.71V ~ 3.6V; The IO port has independent power supply with a minimum of 1.62V, compatible with MCU systems at 1.8V/3.3V (STMicroele...)

Acceleration range (configurable): ±2g / ±4g / ±8g / ±16g

Gyroscopic range (configurable): ±125 / ±250 / ±500 / ±1000 / ±2000 dps

Power consumption: 0.9mA when both acceleration and gyroscope are enabled (high-performance mode); Supports Always-On low-power mode, suitable for battery-powered devices (STMicroele...

Built-in: 4KB FIFO cache, supporting batch data reporting to reduce MCU wake-up frequency; It comes with an on-chip temperature sensor, STMicroele...

Interfaces: Dual interfaces of I²C and SPI

Operating temperature: -40°C to +85°C (consumer-grade, not automotive-grade AEC-Q100)

Impact Resistance: High resistance to mechanical impact, the primary material for consumer wearables.
