# SCH16T-K01 (Murata)

## Definition

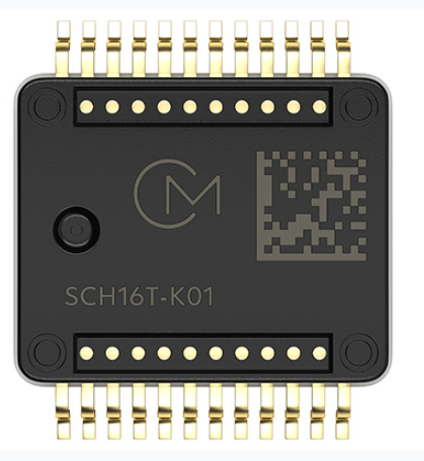

High-precision 6DoF 6-axis MEMS Inertial Measurement Unit (IMU) (3-axis gyroscope + 3-axis accelerometer). AEC-Q100 automotive qualified, designed for attitude and inertial navigation under harsh environments.

## Key Parameters

Axes: 3-axis gyroscope + 3-axis accelerometer (6-axis / 6DoF)

Gyroscope range: ±300°/s

Accelerometer range: ±8g; auxiliary acceleration channel up to ±26g (shock resistant)

Gyro bias instability: as low as 0.3°/h, noise density 0.3 mdps/√Hz

Low-pass filter: selectable 13Hz / 30Hz / 68Hz / 235Hz / 280Hz / 370Hz

Supply voltage: 3.0V ~ 3.6V; IO voltage 1.7V~3.6V

Communication interface: SafeSPI v2.0 (secure SPI with timestamp and SYNC synchronization signal)

Data output: 16bit / 20bit selectable

Operating temperature: -40℃ ~ +110℃, AEC-Q100 automotive qualified

Package: SOIC-24, dimension 12 ×14 ×3 mm, SMD surface mount device

Technology: Murata 3D-MEMS capacitive technology. Factory cross-axis compensation, no on-site calibration required by customers.

## Features

- 3-axis angular rate sensing: detect rotational angular velocity to capture rotation and sway of equipment

- 3-axis acceleration sensing: measure gravity, vibration, shock and linear acceleration

- Foundation for attitude calculation: gyroscope and accelerometer data fusion to output attitude angles, tilt angles and heading

- Comprehensive built-in self-monitoring for real-time sensor status verification, suitable for safety-critical applications

- Timestamp + SYNC synchronization function for synchronous sampling in multi-sensor networks

- Excellent zero-point stability under high/low temperature and heavy vibration conditions to reduce drift error

## Applications

- Inertial navigation IMU and positioning systems (agricultural machinery, construction machinery, marine instruments)

- Attitude control for industrial robots and mobile equipment

- UAV flight control and gimbal stabilization

- Attitude monitoring for construction machinery and agricultural machinery

- Surveying instruments and geological monitoring equipment

- Dynamic tilt monitoring for vehicles and heavy-duty equipment

## Comparison

- SCA3300: 3-axis accelerometer, automotive grade, focused on tilt and vibration measurement

- SCL3400: dual-axis tilt sensor, industrial grade, high precision for static tilt measurement

- SCH16T-K01: 6-axis IMU (gyro + accelerometer), automotive grade, for dynamic attitude, rotation and inertial navigation; ideal for attitude measurement during motion
