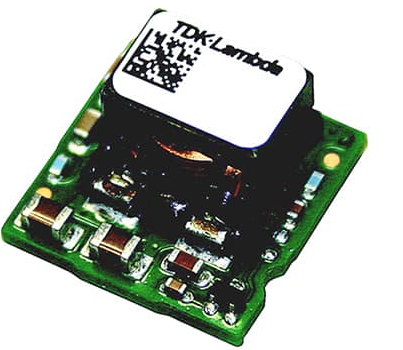

ICH12012A007V‑007‑R | TDK‑Lambda | Non-isolated SMT PoL Load Point DC‑DC Power Module

project

parameter

Input voltage

4.5‑14V DC, compatible with 5V/12V system busbars

Output voltage

0.7–8.5V adjustable

Maximum output current

12A

Maximum power

85W

Switching frequency

500 kHz (fixed)

efficiency

Up to 97%

Ripple noise

15mVpp

Operating temperature

‑40℃ ~ +115℃

protect

Automatic recovery from short circuits and overheating; Overcurrent protection;Power Good；Remote Sense: Remote Sampling

III. Key Functional Features

No need for external loop compensation; factory-calibrated internal closed-loop optimization ensures excellent transient response, superior dynamic performance, and simplified peripheral circuit design.

Supports pre-bias output startup, remote voltage compensation, and Power Good power status signal output.

A complete self-recovery protection mechanism, which automatically restarts after a failure, enhances system reliability.

DOSA standard pads, multi-source compatible, with PCB libraries that can reuse industry-standard packaging libraries.

Certified by IEC/UL/CSA/EN62368-1 safety standards, CE certified, with a 3-year warranty.

IV. Typical Application Scenarios

Communication equipment, industrial control cards

Testing and measuring instruments, broadcasting equipment

Power supply for FPGA, CPU, and ASIC cores, with high-current on-board load points using buck regulation.
