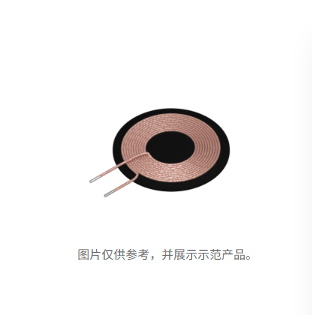

TDK | WT505090-10F2-A11-G1 | WT Series, WPC Qi A11 Standard 5W Wireless Charging Transmitter Coil (Tx Coil Unit)

# Key Specifications

1. Inductance: 6.3μH ±10% @100kHz

2. DC Resistance (DCR): ≤0.06Ω (60mΩ) @25℃

3. Dimensions: Φ51.4mm diameter, 3.38mm thickness (max. 3.99mm)

4. Coil Structure: Single layer, 10 turns, multi-strand Litz wire

5. Magnetic Shielding: Flexible ferrite sheet on the rear side

6. Termination: Through-hole lead soldering

7. Rated Power: 5W, compliant with WPC Qi A11 / MP-A11 specification

8. Operating Temperature: -30℃ ~ +70℃

9. Weight: 14.5g

10. Environmental Compliance: RoHS, halogen-free, REACH compliant

11. Recommended Transmitter ICs: IDT P9035, Toshiba TB6865AFG, NXP MWCT1000, ADI LTC4120, Semtech TS8000

# II. Functions

1. Wireless Power Transmission: Alternating current generates alternating magnetic field in the coil to deliver 5W power to the receiver side.

2. Magnetic Shielding: The bottom flexible ferrite suppresses magnetic field leakage toward PCB, reduces eddy current loss, improves charging efficiency and lowers heat generation.

3. Communication Coupling: Carries modulated signals of Qi protocol to complete handshaking, identity recognition and power negotiation between transmitter and receiver.

>

> ⚠️Note: This is a passive coil only, without driver IC. It must work with a wireless charging transmitter IC.

# III. Scope of Application

## Application Scenarios

1. Consumer Electronics: 5W desktop wireless charging pads for smartphones, TWS earbuds and smart wearables

2. Wireless power supply for IoT smart home devices, security cameras and portable handheld terminals

3. Wireless charging for small industrial handheld equipment and portable medical instruments

>

> Compatible with standard Qi 5W receiver devices. Only supports A11 transmitter solution, not for high-power wireless charging of 15W and above.

 Supplementary Points

Advantages

- TDK all-in-one coil with integrated flexible ferrite. Customers do not need to attach magnetic sheets separately, simplifying SMT and assembly.

- Low DCR, low coil heat generation and high conversion efficiency.

- WPC A11 standard with great compatibility, works with most Qi receivers on the market.

- Through-hole leads for easy assembly.

Limitations

- Transmitter (Tx) coil only; supporting transmitter driver IC is required.

- Max power rating 5W, not suitable for high-power fast charging.

- 51.4mm diameter, relatively large size, not recommended for compact miniaturized products.
