CL10B104KB8NNNC = Samsung 0603 Surface Mount Multilayer Ceramic Capacitor (MLCC)

CL: Samsung MLCC series10: Package 0603 (1.6×0.8mm)B: Dielectric X7R (-55℃ ~ +125℃, temperature drift ±15%)104: Capacitance 100nF = 0.1μFK: Tolerance ±10%8: Thickness 0.8mmNNNC: Tape & reel packaging, lead-free and eco-friendly

Key Specifications

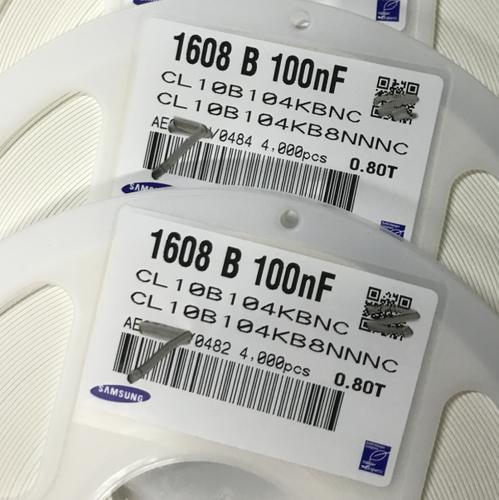

Brand: Samsung Electro-MechanicsPackage: 0603 (1.6×0.8mm)Capacitance: 0.1μF / 100nFTolerance: ±10% (K)Rated Voltage: 50V DCDielectric: X7R (General-purpose medium-temperature dielectric)Operating Temperature Range: -55℃ ~ +125℃Packaging: 7-inch reel, 4000 pcs per reel

Functions

This is a general-purpose MLCC, mainly used for filtering, decoupling, voltage regulation, DC blocking and signal coupling.

• Power supply filtering & decoupling: Mounted beside IC power pins to eliminate high-frequency noise, stabilize voltage and prevent IC malfunction. Widely used in mobile phones, mainboards and adapters.

• Signal coupling & DC blocking: Blocks DC and passes AC on audio, RF and signal lines to protect post-stage circuits.

• Voltage regulation & surge absorption: Absorbs voltage spikes and suppresses surges at power ports to protect components.

• Conventional resonance & timing: Applied to low-frequency oscillation, clock and RC circuits (non-high-frequency precision applications).

In short, it acts as a "purifier" for power circuits and a "bridge" for signal transmission, ensuring circuits operate cleanly, stably and reliably.

Application Scope

Ideal for consumer electronics, industrial equipment and automotive products, featuring compact size, sufficient voltage resistance and wide temperature tolerance.

Consumer Electronics (Most Common Applications)

Smartphones, tablets, laptop mainboardsCharger adapters, fast chargers, power banksRouters, set-top boxes, Bluetooth/Wi-Fi modulesHeadphones, speakers, TVs and monitors

Industrial & Power Equipment

Industrial control boards, PLCs, sensorsAdapters and DC-DC modules within 50VInstruments and general medical devices

Automotive & New Energy Devices

Vehicle central control, navigation systems, car chargersCar lights, BMS (Battery Management System)Automotive ECU (Works steadily within -55℃ ~ +125℃)

Communication & RF (General Frequency Bands)

2G/4G modules, RF front-end filteringAntenna matching and signal circuits
