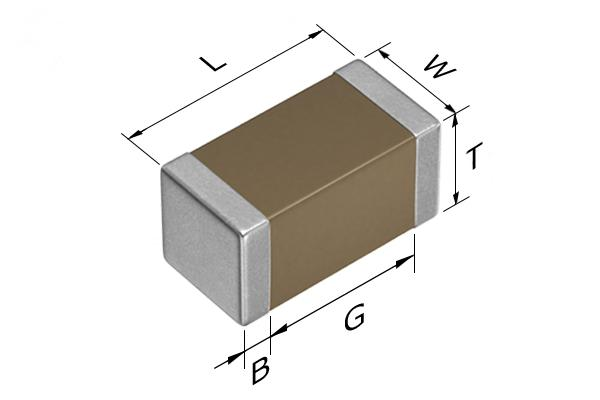

C1608X7S0J106MT is a 0603 (1.6×0.8mm) surface-mount MLCC (Multilayer Ceramic Capacitor) manufactured by TDK.

Electrical Specifications

Capacitance: 10 μFRated Voltage: 6.3 VDielectric: X7S (-55℃ ~ +125℃, capacitance tolerance ±22%)Tolerance: ±20%Features: Low ESR & ESL, excellent high-frequency performance, compact size.

Application Scope

Digital boards, core boards and MCU boards with 5 V / 3.3 V supply voltageDecoupling for power supplies of CPU, MCU, SoC, FPGA cores, I/O ports and DDR modulesDrones, robots, industrial control equipment, medical devices, non-safety automotive electronicsConsumer electronics: mobile phones, tablets, chargers, smart home devices

Functions

• Decoupling: Mounted close to IC power pins to suppress voltage fluctuation and avoid system crash or unexpected reset.

• Filtering: Eliminate high-frequency noise and reduce ripple on power lines.

• Energy storage: Supply instantaneous high current for chips and minimize voltage drop.

• Bypassing: Shunt high-frequency interference to ground and improve EMI/EMC performance.

Summary

This TDK 0603 10 μF 6.3 V X7S MLCC features large capacitance at low voltage, low ESR and high temperature resistance. It is mainly used for power supply decoupling and filtering in digital circuits. Widely applied to various products powered by 3.3 V / 5 V, it is a preferred general-purpose capacitor for scenarios requiring cost efficiency and high reliability.
