Comprehensive Analysis of TDK-Lambda HWS3000 and GUS Series Power Supplies

In fields such as industrial automation, semiconductor manufacturing and precision testing & measurement, power supplies serve as core power components. Their stability, efficiency and integration level directly determine equipment performance and operating costs. As a global leader in power supply technology, TDK-Lambda offers the HWS3000 series programmable high-power power supplies and GUS series compact high-efficiency industrial power supplies. Featuring differentiated positioning and superior performance, they have become benchmark choices in the mid-to-high-end power supply market and fully meet stringent power supply requirements across diverse scenarios.

I. HWS3000 Series: 3kW High-Density Programmable Power Supply, Benchmark for High-Power Precision Control

The HWS3000 series (including G, GT and GT4 models) is a 3000W-class high-density programmable AC-DC power supply developed by TDK-Lambda. It features compact size, high power output, programmable function and strong compatibility, effectively solving the drawbacks of traditional high-power power supplies such as bulky structure, low control accuracy and poor adaptability. It is an ideal power solution for laboratory testing, semiconductor equipment, RF amplification and other applications.

1. Core Specifications: Ultra-high Integration & Wide-range Compatibility

Power & Dimension: Rated power reaches 3000W (1500W under low-voltage single-phase input). With compact dimensions of only 270×150×61mm and light weight, it boasts industry-leading power density.

Input Voltage:

• Model G (Single-phase): 85–265Vac, compatible with global general power grids

• Model GT (Three-phase): 170–265Vac, suitable for industrial three-phase power grids

• Model GT4 (Wide-range Three-phase): 340–528Vac, applicable to high-voltage industrial scenarios

Programmable Output: Standard models with 24V, 48V, 60V, 130V and other outputs are available. It supports full-range CV/CC (Constant Voltage/Constant Current) programming from 0 to rated voltage and current, satisfying power supply demands of precision loads.

Control Modes: Dual control modes including RS485 Modbus digital control and 1–5V/4–20mA analog control are supported, enabling flexible switching between remote debugging and local operation.

Environmental Adaptability & Reliability: It achieves up to 93% conversion efficiency with variable-speed fan noise ≤45dB. The operating temperature ranges from -20℃ to +70℃, and cold start is available at -40℃ to adapt to harsh industrial environments. It comes with a 5-year warranty, and redundant design of core capacitors ensures longer service life.

2. Core Advantages: Four Merits to Solve High-Power Power Supply Challenges

• Ultra-high Power Density: Delivers 3kW power output in a small footprint, greatly saving cabinet space and fitting miniaturized equipment integration.

• Precision Programmable Control: Adopts dual CV/CC modes with continuously adjustable output voltage and current, perfectly matching precision loads for laser processing and semiconductor testing.

• Flexible Expansion & Adaptability: Supports parallel connection of up to 10 units and series connection of up to 3 units for easy power expansion. Optional /HD (triple-proof coating) and /RF (reverse air duct) versions are available for harsh environments and special installation conditions.

• Industrial-grade Safety & Stability: Compliant with SEMI F47, AEC-Q200 and other standards. Built-in multiple protections against overvoltage, overcurrent, overtemperature and short circuit, with high insulation strength and strong vibration & shock resistance.

3. Typical Application Scenarios

• Semiconductor Manufacturing: Power supply for wafer testing, etching equipment and ion implanters to meet precise voltage and current control requirements.

• Testing & Measurement: Power supply for ATE automatic test systems, laboratory precision power sources and RF amplifiers.

• Industrial Automation: Power supply for high-power servo motors, industrial robots and laser processing equipment.

• Communication & Medical Treatment: Power supply for RF base stations, portable medical devices and high-end imaging equipment.

Conclusion

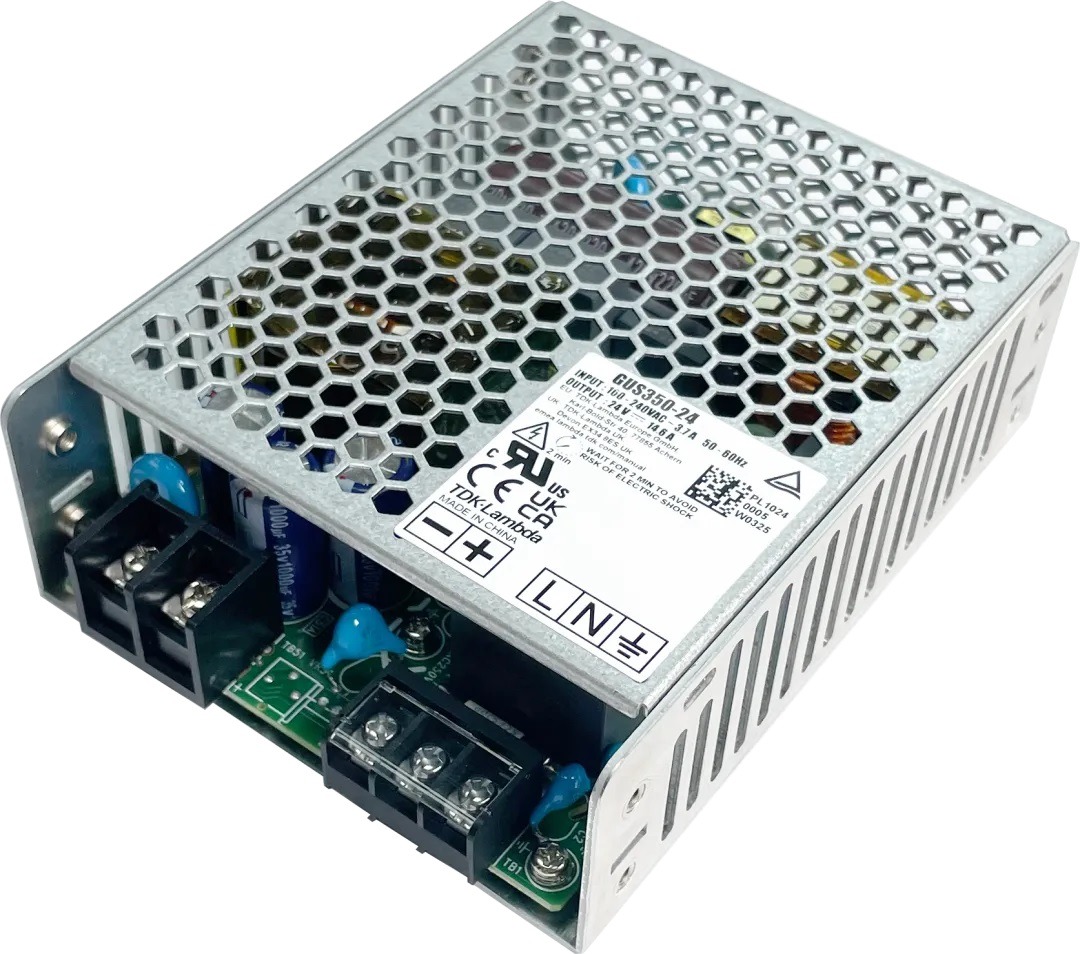

With differentiated product positioning, TDK-Lambda HWS3000 and GUS series power supplies cover full-range power supply demands from high-power precision control to medium & low-power general applications. Featuring high density, programmability and high reliability, the HWS3000 series acts as the power core for high-power precision equipment. The GUS series realizes efficient compact design and cost performance advantages, empowering mass application scenarios including industrial automation and medical equipment.

As core power supply product lines of TDK-Lambda, both series inherit the brand’s exquisite craftsmanship and technical accumulation, delivering outstanding stability, safety and compatibility. They help industrial equipment operate efficiently, stably and cost-effectively, serving as preferred options for mid-to-high-end power supply selection.
