Murata LQP01HV0N3B02 Ultra High Q High-Frequency Chip Inductor

一、基础参数

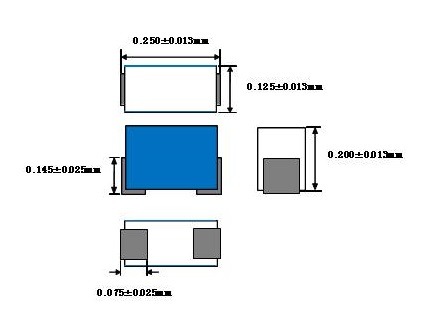

Series: LQP01HV Series (Ultra High Q High-Frequency Chip Inductor)Dimensions: 0201 (0.25×0.125×0.20mm), ultra-miniature industry packageInductance: 0.3nH (0N3=0.3nH), high-frequency RF inductorType: Thin-film process, Super High Q RF Inductor

二、Core Functions

Applied for impedance matching, resonance, filtering and choking in radio frequency (RF) circuits.Features: ultra-compact size, ultra high Q, low loss and excellent frequency stability.

Key Functions

• RF Impedance Matching: Impedance matching between antenna, power amplifier (PA), SAW filter, GPS and other modules to improve signal transmission efficiency.

• Resonance / Filtering: Frequency selection, noise reduction and spurious wave filtering for high-frequency signals.

• Choke: Block high-frequency signals and pass DC, protecting power supply and baseband circuits.

Electrical Characteristics

• Ultra High Q Factor: Extremely low loss and minor signal attenuation, suitable for high-sensitivity RF circuits.

• Ultra-compact Package: 0201 size, about 60% smaller than 0402, ideal for high-density PCB layout.

• High Frequency Stability: Operating frequency up to several GHz, compatible with 5G, Wi‑Fi 6, Bluetooth and other protocols.

三、Application Scope

✅ 1. Smartphone / 5G Mobile Phone5G/4G/LTE/WCDMA/GSM RF front-end (PA/ANT/GPS/Wi‑Fi/Bluetooth);Antenna matching circuit, RF filter and resonant circuit.

✅ 2. Wireless Communication ModuleWi‑Fi 6/6E, Bluetooth 5.x, NFC, GPS/Beidou modules;IoT wireless modules and industrial RF modules.

✅ 3. Wearable DevicesSmart watches, fitness bands, AR/VR glasses, TWS earphones (ultra-small space & low loss requirement).

✅ 4. Other High-Frequency DevicesRF circuits of laptops and tablets, miniature RF transceivers, medical wireless devices.

四、Summary in One Sentence

LQP01HV0N3B02 is a Murata 0201 package, 0.3nH ultra high Q RF inductor. It is specially used for RF matching, filtering and resonance in 5G smartphones, wireless modules and wearable devices, featuring ultra-small size, low loss and high-frequency performance.
