DK-20602: Evaluation & Development Kit for ICM-20602 6-Axis Inertial Sensor

DK-20602

Brand: TDK/InvenSenseFull Name: Development Kit for ICM-20602 6‑Axis Motion SensorChinese Name: ICM-20602 6-Axis Motion Sensor Development Kit

2. Function

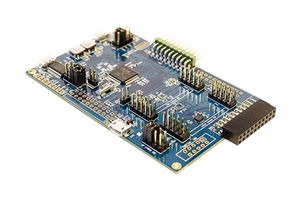

It is an official evaluation and development board for the ICM-20602 (6-axis gyroscope + accelerometer). It is used for rapid testing, performance evaluation and product development based on the ICM-20602.

Onboard core components: ICM-20602 sensor + Microchip G55 MCU + On-board debugger.

Supporting software: MotionLink (GUI host computer) + eMD driver library. It supports real-time data reading, parameter configuration, waveform observation and algorithm verification.

No additional programmer or debugger is required. It adopts USB power supply and data transmission, plug and play.

3. Application Scope & Target Users

• R&D Engineers: Evaluate ICM-20602 performance, develop drivers and configure sensor parameters.

• Solution Providers & Customers: Conduct product pre-research, model selection testing and demo prototype development.

• Universities & Laboratories: Teaching and experiments on motion detection and attitude algorithm research.

4. Matching Chip: ICM-20602

6-axis design: 3-axis gyroscope + 3-axis accelerometer.Features: Low cost and low power consumption; mainstream model for consumer electronics (non-automotive grade).

Measurement Range:Gyroscope: ±250/500/1000/2000 dpsAccelerometer: ±2/4/8/16 g

Typical Applications: Drones, game controllers, smart bracelets, VR/AR devices, industrial attitude detection.

5. Summary

DK-20602 is an official development board launched by TDK/InvenSense for the ICM-20602 6-axis sensor. It is designed for rapid evaluation and development of consumer-grade motion detection products, and serves as an essential tool for R&D and component selection.
